Loop agents¶

The `LoopAgent`¶

The LoopAgent is a workflow agent that executes its sub-agents in a loop (i.e. iteratively). It repeatedly runs a sequence of agents for a specified number of iterations or until a termination condition is met.

Use the LoopAgent when your workflow involves repetition or iterative refinement, such as like revising code.

Example¶

You want to build an agent that can generate images of food, but sometimes when you want to generate a specific number of items (e.g. 5 bananas), it generates a different number of those items in the image (e.g. an image of 7 bananas). You have two tools: generate_image, count_food_items. Because you want to keep generating images until it either correctly generates the specified number of items, or after a certain number of iterations, you should build your agent using a LoopAgent.

As with other workflow agents, the LoopAgent is not powered by an LLM, and is thus deterministic in how it executes. That being said, workflow agents are only concerned only with their execution (i.e. in a loop), and not their internal logic; the tools or sub-agents of a workflow agent may or may not utilize LLMs.

How it Works¶

When the LoopAgent's run_async() method is called, it performs the following actions:

Sub-Agent Execution: It iterates through the sub_agents list in order. For each sub-agent, it calls the agent's run_async() method.
Termination Check:

Crucially, the LoopAgent itself does not inherently decide when to stop looping. You must implement a termination mechanism to prevent infinite loops. Common strategies include:
- max_iterations: Set a maximum number of iterations in the LoopAgent. The loop will terminate after that many iterations.
- Escalation from sub-agent: Design one or more sub-agents to evaluate a condition (e.g., "Is the document quality good enough?", "Has a consensus been reached?"). If the condition is met, the sub-agent can signal termination (e.g., by raising a custom event, setting a flag in a shared context, or returning a specific value).

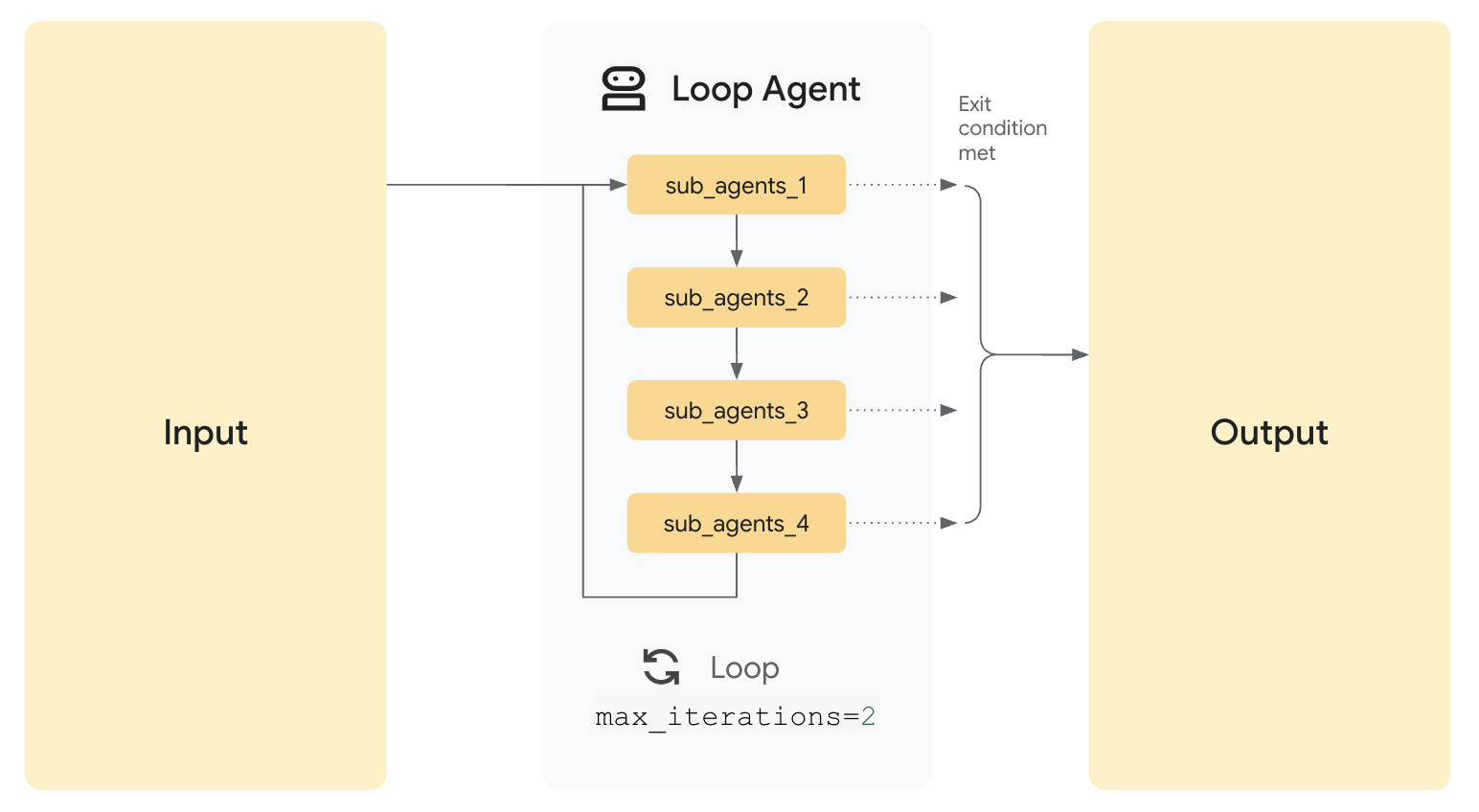

Loop Agent

Full Example: Iterative Document Improvement¶

Imagine a scenario where you want to iteratively improve a document:

Writer Agent: An LlmAgent that generates or refines a draft on a topic.
Critic Agent: An LlmAgent that critiques the draft, identifying areas for improvement.
```
LoopAgent(sub_agents=[WriterAgent, CriticAgent], max_iterations=5)
```

In this setup, the LoopAgent would manage the iterative process. The CriticAgent could be designed to return a "STOP" signal when the document reaches a satisfactory quality level, preventing further iterations. Alternatively, the max_iterations parameter could be used to limit the process to a fixed number of cycles, or external logic could be implemented to make stop decisions. The loop would run at most five times, ensuring the iterative refinement doesn't continue indefinitely.

Full Code

from google.adk.agents.loop_agent import LoopAgent
from google.adk.agents.llm_agent import LlmAgent
from google.genai import types
from google.adk.sessions import InMemorySessionService
from google.adk.runners import Runner

# --- Constants ---
APP_NAME = "doc_writing_app"
USER_ID = "dev_user_01"
SESSION_ID = "session_01"
GEMINI_MODEL = "gemini-2.0-flash"

# --- State Keys ---
STATE_INITIAL_TOPIC = "quantum physics"
STATE_CURRENT_DOC = "current_document"
STATE_CRITICISM = "criticism"

writer_agent = LlmAgent(
    name="WriterAgent",
    model=GEMINI_MODEL,
    instruction=f"""
    You are a Creative Writer AI.
    Check the session state for '{STATE_CURRENT_DOC}'.
    If '{STATE_CURRENT_DOC}' does NOT exist or is empty, write a very short (1-2 sentence) story or document based on the topic in state key '{STATE_INITIAL_TOPIC}'.
    If '{STATE_CURRENT_DOC}' *already exists* and '{STATE_CRITICISM}', refine '{STATE_CURRENT_DOC}' according to the comments in '{STATE_CRITICISM}'."
    Output *only* the story or the exact pass-through message.
    """,
    description="Writes the initial document draft.",
    output_key=STATE_CURRENT_DOC # Saves output to state
)

# Critic Agent (LlmAgent)
critic_agent = LlmAgent(
    name="CriticAgent",
    model=GEMINI_MODEL,
    instruction=f"""
    You are a Constructive Critic AI.
    Review the document provided in the session state key '{STATE_CURRENT_DOC}'.
    Provide 1-2 brief suggestions for improvement (e.g., "Make it more exciting", "Add more detail").
    Output *only* the critique.
    """,
    description="Reviews the current document draft.",
    output_key=STATE_CRITICISM # Saves critique to state
)

# Create the LoopAgent
loop_agent = LoopAgent(
    name="LoopAgent", sub_agents=[writer_agent, critic_agent], max_iterations=5
)

# Session and Runner
session_service = InMemorySessionService()
session = session_service.create_session(app_name=APP_NAME, user_id=USER_ID, session_id=SESSION_ID)
runner = Runner(agent=loop_agent, app_name=APP_NAME, session_service=session_service)

# Agent Interaction
def call_agent(query):
    content = types.Content(role='user', parts=[types.Part(text=query)])
    events = runner.run(user_id=USER_ID, session_id=SESSION_ID, new_message=content)

    for event in events:
        if event.is_final_response():
            final_response = event.content.parts[0].text
            print("Agent Response: ", final_response)

call_agent("execute")
