Agent Observability with Cloud Trace¶
With ADK, you’ve already capable of inspecting and observing your agent interaction locally utilizing the powerful web development UI discussed in here. However, if we aim for cloud deployment, we will need a centralized dashboard to observe real traffic.
Cloud Trace is a component of Google Cloud Observability. It is a powerful tool for monitoring, debugging, and improving the performance of your applications by focusing specifically on tracing capabilities. For Agent Development Kit (ADK) applications, Cloud Trace enables comprehensive tracing, helping you understand how requests flow through your agent's interactions and identify performance bottlenecks or errors within your AI agents.
Overview¶
Cloud Trace is built on OpenTelemetry, an open-source standard that supports many languages and ingestion methods for generating trace data. This aligns with observability practices for ADK applications, which also leverage OpenTelemetry-compatible instrumentation, allowing you to :
- Trace agent interactions : Cloud Trace continuously gathers and analyzes trace data from your project, enabling you to rapidly diagnose latency issues and errors within your ADK applications. This automatic data collection simplifies the process of identifying problems in complex agent workflows.
- Debug issues : Quickly diagnose latency issues and errors by analyzing detailed traces. Crucial for understanding issues that manifest as increased communication latency across different services or during specific agent actions like tool calls.
- In-depth Analysis and Visualization: Trace Explorer is the primary tool for analyzing traces, offering visual aids like heatmaps for span duration and line charts for request/error rates. It also provides a spans table, groupable by service and operation, which gives one-click access to representative traces and a waterfall view to easily identify bottlenecks and sources of errors within your agent's execution path
The following example will assume the following agent directory structure
working_dir/
├── weather_agent/
│ ├── agent.py
│ └── __init__.py
└── deploy_agent_engine.py
└── deploy_fast_api_app.py
└── agent_runner.py
# weather_agent/agent.py
import os
from google.adk.agents import Agent
os.environ.setdefault("GOOGLE_CLOUD_PROJECT", "{your-project-id}")
os.environ.setdefault("GOOGLE_CLOUD_LOCATION", "global")
os.environ.setdefault("GOOGLE_GENAI_USE_VERTEXAI", "True")
# Define a tool function
def get_weather(city: str) -> dict:
"""Retrieves the current weather report for a specified city.
Args:
city (str): The name of the city for which to retrieve the weather report.
Returns:
dict: status and result or error msg.
"""
if city.lower() == "new york":
return {
"status": "success",
"report": (
"The weather in New York is sunny with a temperature of 25 degrees"
" Celsius (77 degrees Fahrenheit)."
),
}
else:
return {
"status": "error",
"error_message": f"Weather information for '{city}' is not available.",
}
# Create an agent with tools
root_agent = Agent(
name="weather_agent",
model="gemini-2.5-flash",
description="Agent to answer questions using weather tools.",
instruction="You must use the available tools to find an answer.",
tools=[get_weather],
)
Cloud Trace Setup¶
Setup for Agent Engine Deployment¶
Agent Engine Deployment - from ADK CLI¶
You can enable cloud tracing by adding --trace_to_cloud
flag when deploying your agent using adk deploy agent_engine
command for agent engine deployment.
adk deploy agent_engine \
--project=$GOOGLE_CLOUD_PROJECT \
--region=$GOOGLE_CLOUD_LOCATION \
--staging_bucket=$STAGING_BUCKET \
--trace_to_cloud \
$AGENT_PATH
Agent Engine Deployment - from Python SDK¶
If you prefer using Python SDK, you can enable cloud tracing by adding enable_tracing=True
when initialize the AdkApp
object
# deploy_agent_engine.py
from vertexai.preview import reasoning_engines
from vertexai import agent_engines
from weather_agent.agent import root_agent
import vertexai
PROJECT_ID = "{your-project-id}"
LOCATION = "{your-preferred-location}"
STAGING_BUCKET = "{your-staging-bucket}"
vertexai.init(
project=PROJECT_ID,
location=LOCATION,
staging_bucket=STAGING_BUCKET,
)
adk_app = reasoning_engines.AdkApp(
agent=root_agent,
enable_tracing=True,
)
remote_app = agent_engines.create(
agent_engine=adk_app,
extra_packages=[
"./weather_agent",
],
requirements=[
"google-cloud-aiplatform[adk,agent_engines]",
],
)
Setup for Cloud Run Deployment¶
Cloud Run Deployment - from ADK CLI¶
You can enable cloud tracing by adding --trace_to_cloud
flag when deploying your agent using adk deploy cloud_run
command for cloud run deployment.
adk deploy cloud_run \
--project=$GOOGLE_CLOUD_PROJECT \
--region=$GOOGLE_CLOUD_LOCATION \
--trace_to_cloud \
$AGENT_PATH
If you want to enable cloud tracing and using a customized agent service deployment on Cloud Run, you can refer to the Setup for Customized Deployment section below
Setup for Customized Deployment¶
From Built-in get_fast_api_app
Module¶
If you want to customize your own agent service, you can enable cloud tracing by initialize the FastAPI app using built-in get_fast_api_app
module and set trace_to_cloud=True
# deploy_fast_api_app.py
import os
from google.adk.cli.fast_api import get_fast_api_app
from fastapi import FastAPI
# Set GOOGLE_CLOUD_PROJECT environment variable for cloud tracing
os.environ.setdefault("GOOGLE_CLOUD_PROJECT", "alvin-exploratory-2")
# Discover the `weather_agent` directory in current working dir
AGENT_DIR = os.path.dirname(os.path.abspath(__file__))
# Create FastAPI app with enabled cloud tracing
app: FastAPI = get_fast_api_app(
agents_dir=AGENT_DIR,
web=True,
trace_to_cloud=True,
)
app.title = "weather-agent"
app.description = "API for interacting with the Agent weather-agent"
# Main execution
if __name__ == "__main__":
import uvicorn
uvicorn.run(app, host="0.0.0.0", port=8080)
From Customized Agent Runner¶
If you want to fully customize your ADK agent runtime, you can enable cloud tracing by using CloudTraceSpanExporter
module from Opentelemetry.
# agent_runner.py
from google.adk.runners import Runner
from google.adk.sessions import InMemorySessionService
from weather_agent.agent import root_agent as weather_agent
from google.genai.types import Content, Part
from opentelemetry import trace
from opentelemetry.exporter.cloud_trace import CloudTraceSpanExporter
from opentelemetry.sdk.trace import export
from opentelemetry.sdk.trace import TracerProvider
APP_NAME = "weather_agent"
USER_ID = "u_123"
SESSION_ID = "s_123"
provider = TracerProvider()
processor = export.BatchSpanProcessor(
CloudTraceSpanExporter(project_id="{your-project-id}")
)
provider.add_span_processor(processor)
trace.set_tracer_provider(provider)
session_service = InMemorySessionService()
runner = Runner(agent=weather_agent, app_name=APP_NAME, session_service=session_service)
async def main():
session = await session_service.get_session(
app_name=APP_NAME, user_id=USER_ID, session_id=SESSION_ID
)
if session is None:
session = await session_service.create_session(
app_name=APP_NAME, user_id=USER_ID, session_id=SESSION_ID
)
user_content = Content(
role="user", parts=[Part(text="what's weather in paris?")]
)
final_response_content = "No response"
async for event in runner.run_async(
user_id=USER_ID, session_id=SESSION_ID, new_message=user_content
):
if event.is_final_response() and event.content and event.content.parts:
final_response_content = event.content.parts[0].text
print(final_response_content)
if __name__ == "__main__":
import asyncio
asyncio.run(main())
Inspect Cloud Traces¶

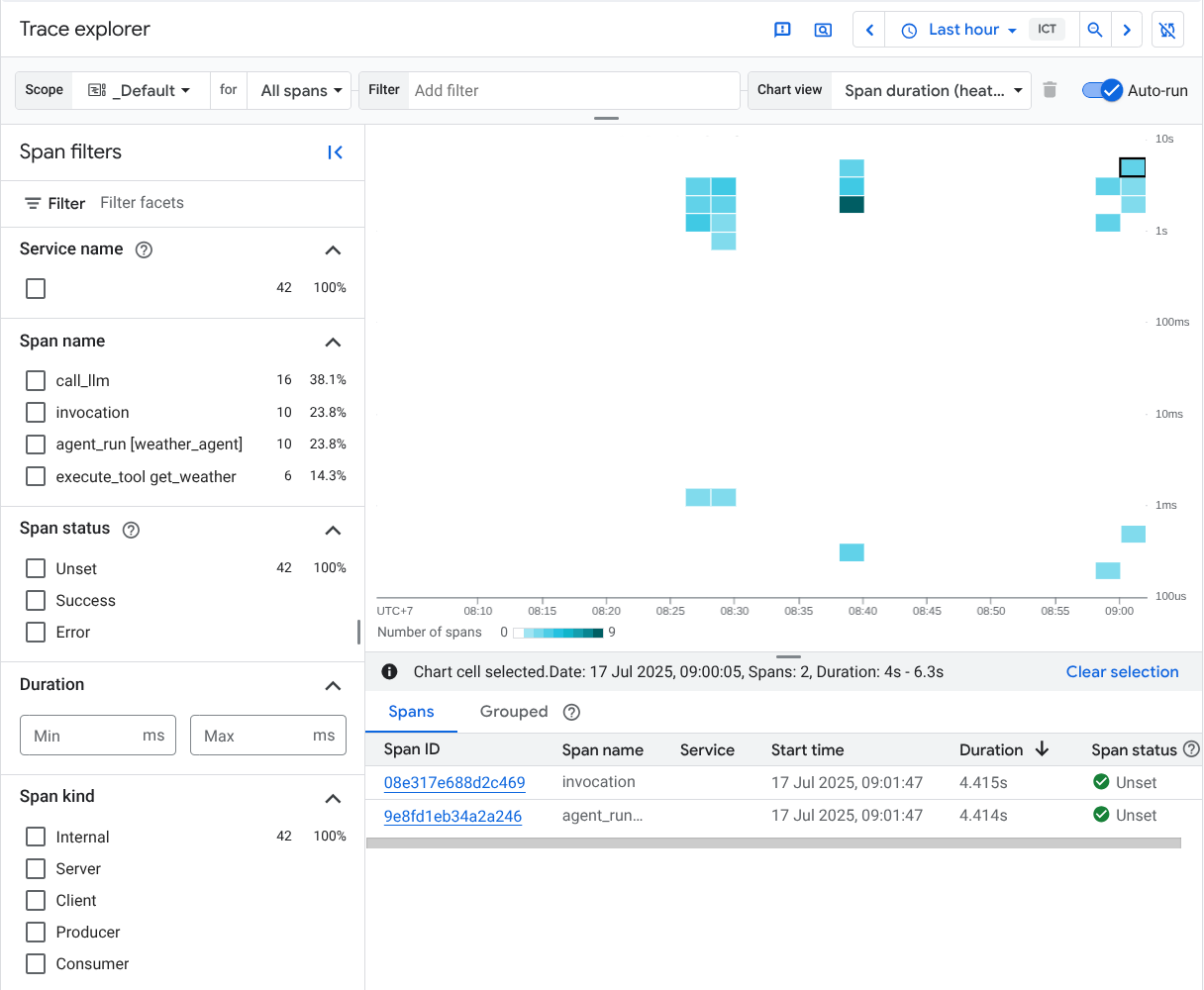

After the setup is complete, whenever you interact with the agent it will automatically send trace data to Cloud Trace. You can inspect the traces by going to console.cloud.google.com and visit the Trace Explorer on the configured Google Cloud Project
And then you will see all available traces produced by ADK agent which configured in several span names such as invocation
, agent_run
. call_llm
and execute_tool

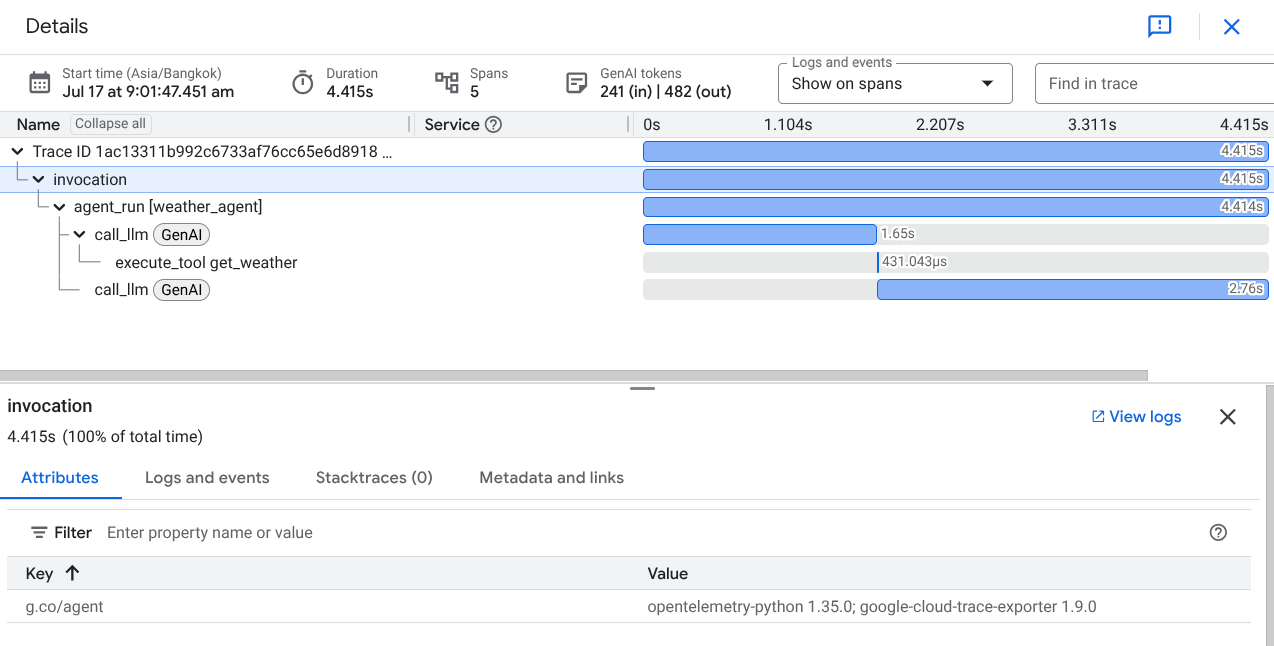

If you click on one of the traces, you will see the waterfall view of the detailed process, similar to what we see in the web development UI with adk web
command.
