Agent Observability with Monocle

Monocle is an open-source observability platform for monitoring, debugging, and improving LLM applications and AI Agents. It provides comprehensive tracing capabilities for your Google ADK applications through automatic instrumentation. Monocle generates OpenTelemetry-compatible traces that can be exported to various destinations including local files or console output.

Overview

Monocle automatically instruments Google ADK applications, allowing you to:

• Trace agent interactions - Automatically capture every agent run, tool call, and model request with full context and metadata
• Monitor execution flow - Track agent state, delegation events, and execution flow through detailed traces
• Debug issues - Analyze detailed traces to quickly identify bottlenecks, failed tool calls, and unexpected agent behavior
• Flexible export options - Export traces to local files or console for analysis
• OpenTelemetry compatible - Generate standard OpenTelemetry traces that work with any OTLP-compatible backend

Monocle automatically instruments the following Google ADK components:

• BaseAgent.run_async - Captures agent execution, agent state, and delegation events
• FunctionTool.run_async - Captures tool execution, including tool name, parameters, and results
• Runner.run_async - Captures runner execution, including request context and execution flow

Installation

1. Install Required Packages

pip install monocle_apptrace google-adk

Setup

1. Configure Monocle Telemetry

Monocle automatically instruments Google ADK when you initialize telemetry. Simply call setup_monocle_telemetry() at the start of your application:

from monocle_apptrace import setup_monocle_telemetry

# Initialize Monocle telemetry - automatically instruments Google ADK
setup_monocle_telemetry(workflow_name="my-adk-app")

That's it! Monocle will automatically detect and instrument your Google ADK agents, tools, and runners.

2. Configure Exporters (Optional)

By default, Monocle exports traces to local JSON files. You can configure different exporters using environment variables.

Export to Console (for debugging)

Set the environment variable:

export MONOCLE_EXPORTER="console"

Export to Local Files (default)

export MONOCLE_EXPORTER="file"

Or simply omit the MONOCLE_EXPORTER variable - it defaults to file.

Observe

Now that you have tracing setup, all Google ADK SDK requests will be automatically traced by Monocle.

from monocle_apptrace import setup_monocle_telemetry
from google.adk.agents import Agent
from google.adk.runners import InMemoryRunner
from google.genai import types

# Initialize Monocle telemetry - must be called before using ADK
setup_monocle_telemetry(workflow_name="weather_app")

# Define a tool function
def get_weather(city: str) -> dict:
    """Retrieves the current weather report for a specified city.

    Args:
        city (str): The name of the city for which to retrieve the weather report.

    Returns:
        dict: status and result or error msg.
    """
    if city.lower() == "new york":
        return {
            "status": "success",
            "report": (
                "The weather in New York is sunny with a temperature of 25 degrees"
                " Celsius (77 degrees Fahrenheit)."
            ),
        }
    else:
        return {
            "status": "error",
            "error_message": f"Weather information for '{city}' is not available.",
        }

# Create an agent with tools
agent = Agent(
    name="weather_agent",
    model="gemini-2.0-flash-exp",
    description="Agent to answer questions using weather tools.",
    instruction="You must use the available tools to find an answer.",
    tools=[get_weather]
)

app_name = "weather_app"
user_id = "test_user"
session_id = "test_session"
runner = InMemoryRunner(agent=agent, app_name=app_name)
session_service = runner.session_service

await session_service.create_session(
    app_name=app_name,
    user_id=user_id,
    session_id=session_id
)

# Run the agent (all interactions will be automatically traced)
async for event in runner.run_async(
    user_id=user_id,
    session_id=session_id,
    new_message=types.Content(role="user", parts=[
        types.Part(text="What is the weather in New York?")]
    )
):
    if event.is_final_response():
        print(event.content.parts[0].text.strip())

Accessing Traces

By default, Monocle generates traces in JSON files in the local directory ./monocle. The file name format is:

monocle_trace_{workflow_name}_{trace_id}_{timestamp}.json

Each trace file contains an array of OpenTelemetry-compatible spans that capture:

• Agent execution spans - Agent state, delegation events, and execution flow
• Tool execution spans - Tool name, input parameters, and output results
• LLM interaction spans - Model calls, prompts, responses, and token usage (if using Gemini or other LLMs)

You can analyze these trace files using any OpenTelemetry-compatible tool or write custom analysis scripts.

Visualizing Traces with VS Code Extension

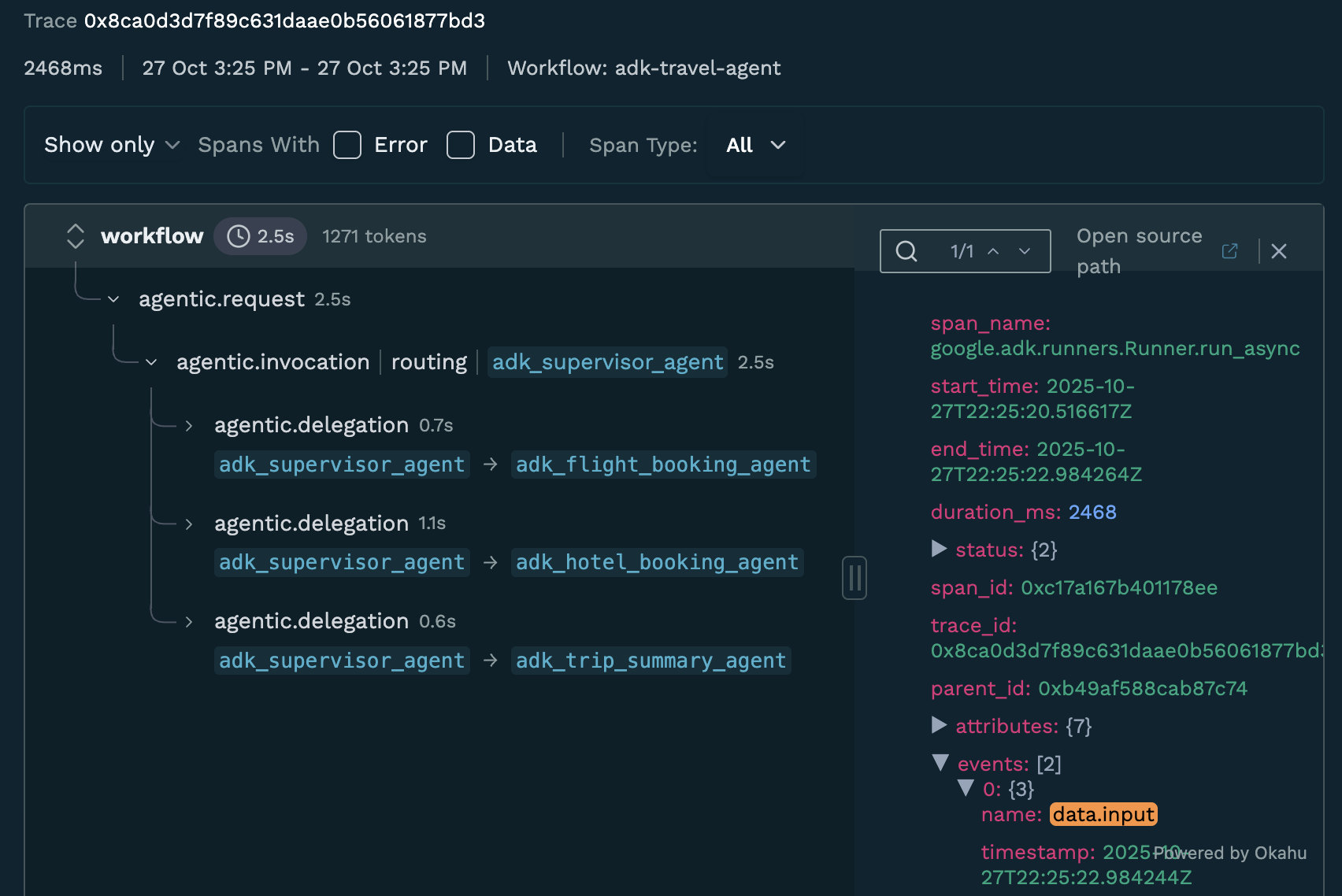

The Okahu Trace Visualizer VS Code extension provides an interactive way to visualize and analyze Monocle-generated traces directly in Visual Studio Code.

Installation

1. Open VS Code
2. Press Ctrl+P (or Cmd+P on Mac) to open Quick Open
3. Paste the following command and press Enter:

ext install OkahuAI.okahu-ai-observability

Alternatively, you can install it from the VS Code Marketplace.

Features

The extension provides:

• Custom Activity Bar Panel - Dedicated sidebar for trace file management
• Interactive File Tree - Browse and select trace files with custom React UI
• Split View Analysis - Gantt chart visualization alongside JSON data viewer
• Real-time Communication - Seamless data flow between VS Code and React components
• VS Code Theming - Fully integrated with VS Code's light/dark themes

Usage

1. After running your ADK application with Monocle tracing enabled, trace files will be generated in the ./monocle directory
2. Open the Okahu Trace Visualizer panel from the VS Code Activity Bar
3. Browse and select trace files from the interactive file tree
4. View your traces with:
5. Gantt chart visualization - See the timeline and hierarchy of spans
6. JSON data viewer - Inspect detailed span attributes and events
7. Token counts - View token usage for LLM calls
8. Error badges - Quickly identify failed operations

What Gets Traced

Monocle automatically captures the following information from Google ADK:

• Agent Execution: Agent state, delegation events, and execution flow
• Tool Calls: Tool name, input parameters, and output results
• Runner Execution: Request context and overall execution flow
• Timing Information: Start time, end time, and duration for each operation
• Error Information: Exceptions and error states

All traces are generated in OpenTelemetry format, making them compatible with any OTLP-compatible observability backend.
