Model Context Protocol Tools

This guide walks you through two ways of integrating Model Context Protocol (MCP) with ADK.

What is Model Context Protocol (MCP)?

The Model Context Protocol (MCP) is an open standard designed to standardize how Large Language Models (LLMs) like Gemini and Claude communicate with external applications, data sources, and tools. Think of it as a universal connection mechanism that simplifies how LLMs obtain context, execute actions, and interact with various systems.

MCP follows a client-server architecture, defining how data (resources), interactive templates (prompts), and actionable functions (tools) are exposed by an MCP server and consumed by an MCP client (which could be an LLM host application or an AI agent).

This guide covers two primary integration patterns:

Using Existing MCP Servers within ADK: An ADK agent acts as an MCP client, leveraging tools provided by external MCP servers.
Exposing ADK Tools via an MCP Server: Building an MCP server that wraps ADK tools, making them accessible to any MCP client.

Prerequisites

Before you begin, ensure you have the following set up:

Set up ADK: Follow the standard ADK [setup]() instructions in the quickstart.
Install/update Python: MCP requires Python version of 3.9 or higher.
Setup Node.js and npx: Many community MCP servers are distributed as Node.js packages and run using npx. Install Node.js (which includes npx) if you haven't already. For details, see https://nodejs.org/en.
Verify Installations: Confirm adk and npx are in your PATH within the activated virtual environment:

# Both commands should print the path to the executables.
which adk
which npx

1. Using MCP servers with ADK agents (ADK as an MCP client)

This section shows two examples of using MCP servers with ADK agents. This is the most common integration pattern. Your ADK agent needs to use functionality provided by an existing service that exposes itself as an MCP Server.

`MCPToolset` class

The examples use the MCPToolset class in ADK which acts as the bridge to the MCP server. Your ADK agent uses MCPToolset to:

Connect: Establish a connection to an MCP server process. This can be a local server communicating over standard input/output (StdioServerParameters) or a remote server using Server-Sent Events (SseServerParams).
Discover: Query the MCP server for its available tools (list_tools MCP method).
Adapt: Convert the MCP tool schemas into ADK-compatible BaseTool instances.
Expose: Present these adapted tools to the ADK LlmAgent.
Proxy Calls: When the LlmAgent decides to use one of these tools, MCPToolset forwards the call (call_tool MCP method) to the MCP server and returns the result.
Manage Connection: Handle the lifecycle of the connection to the MCP server process, often requiring explicit cleanup.

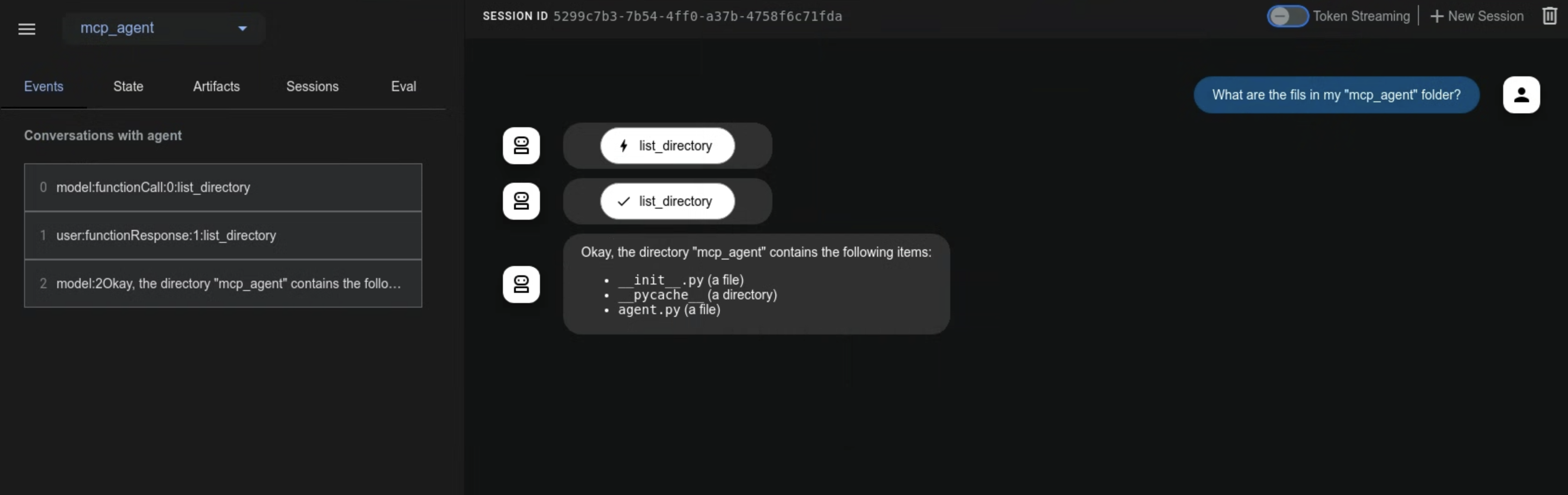

Example 1: File System MCP Server

This example demonstrates connecting to a local MCP server that provides file system operations.

Step 1: Attach the MCP Server to your ADK agent via `MCPToolset`

Create agent.py in ./adk_agent_samples/mcp_agent/ and use the following code snippet to define a function that initializes the MCPToolset.

Important: Replace "/path/to/your/folder" with the absolute path to an actual folder on your system.

# ./adk_agent_samples/mcp_agent/agent.py
import asyncio
from dotenv import load_dotenv
from google.genai import types
from google.adk.agents.llm_agent import LlmAgent
from google.adk.runners import Runner
from google.adk.sessions import InMemorySessionService
from google.adk.artifacts.in_memory_artifact_service import InMemoryArtifactService # Optional
from google.adk.tools.mcp_tool.mcp_toolset import MCPToolset, SseServerParams, StdioServerParameters

# Load environment variables from .env file in the parent directory
# Place this near the top, before using env vars like API keys
load_dotenv('../.env')

# --- Step 1: Import Tools from MCP Server ---
async def get_tools_async():
  """Gets tools from the File System MCP Server."""
  print("Attempting to connect to MCP Filesystem server...")
  tools, exit_stack = await MCPToolset.from_server(
      # Use StdioServerParameters for local process communication
      connection_params=StdioServerParameters(
          command='npx', # Command to run the server
          args=["-y",    # Arguments for the command
                "@modelcontextprotocol/server-filesystem",
                # TODO: IMPORTANT! Change the path below to an ABSOLUTE path on your system.
                "/path/to/your/folder"],
      )
      # For remote servers, you would use SseServerParams instead:
      # connection_params=SseServerParams(url="http://remote-server:port/path", headers={...})
  )
  print("MCP Toolset created successfully.")
  # MCP requires maintaining a connection to the local MCP Server.
  # exit_stack manages the cleanup of this connection.
  return tools, exit_stack

# --- Step 2: Agent Definition ---
async def get_agent_async():
  """Creates an ADK Agent equipped with tools from the MCP Server."""
  tools, exit_stack = await get_tools_async()
  print(f"Fetched {len(tools)} tools from MCP server.")
  root_agent = LlmAgent(
      model='gemini-2.0-flash', # Adjust model name if needed based on availability
      name='filesystem_assistant',
      instruction='Help user interact with the local filesystem using available tools.',
      tools=tools, # Provide the MCP tools to the ADK agent
  )
  return root_agent, exit_stack

# --- Step 3: Main Execution Logic ---
async def async_main():
  session_service = InMemorySessionService()
  # Artifact service might not be needed for this example
  artifacts_service = InMemoryArtifactService()

  session = session_service.create_session(
      state={}, app_name='mcp_filesystem_app', user_id='user_fs'
  )

  # TODO: Change the query to be relevant to YOUR specified folder.
  # e.g., "list files in the 'documents' subfolder" or "read the file 'notes.txt'"
  query = "list files in the tests folder"
  print(f"User Query: '{query}'")
  content = types.Content(role='user', parts=[types.Part(text=query)])

  root_agent, exit_stack = await get_agent_async()

  runner = Runner(
      app_name='mcp_filesystem_app',
      agent=root_agent,
      artifact_service=artifacts_service, # Optional
      session_service=session_service,
  )

  print("Running agent...")
  events_async = runner.run_async(
      session_id=session.id, user_id=session.user_id, new_message=content
  )

  async for event in events_async:
    print(f"Event received: {event}")

  # Crucial Cleanup: Ensure the MCP server process connection is closed.
  print("Closing MCP server connection...")
  await exit_stack.aclose()
  print("Cleanup complete.")

if __name__ == '__main__':
  try:
    asyncio.run(async_main())
  except Exception as e:
    print(f"An error occurred: {e}")

Step 2: Observe the result

Run the script from the adk_agent_samples directory (ensure your virtual environment is active):

cd ./adk_agent_samples
python3 ./mcp_agent/agent.py

The following shows the expected output for the connection attempt, the MCP server starting (via npx), the ADK agent events (including the FunctionCall to list_directory and the FunctionResponse), and the final agent text response based on the file listing. Ensure the exit_stack.aclose() runs at the end.

User Query: 'list files in the tests folder'
Attempting to connect to MCP Filesystem server...
# --> npx process starts here, potentially logging to stderr/stdout
Secure MCP Filesystem Server running on stdio
Allowed directories: [
  '/path/to/your/folder'
]
# <-- npx process output ends
MCP Toolset created successfully.
Fetched [N] tools from MCP server. # N = number of tools like list_directory, read_file etc.
Running agent...
Event received: content=Content(parts=[Part(..., function_call=FunctionCall(id='...', args={'path': 'tests'}, name='list_directory'), ...)], role='model') ...
Event received: content=Content(parts=[Part(..., function_response=FunctionResponse(id='...', name='list_directory', response={'result': CallToolResult(..., content=[TextContent(...)], ...)}), ...)], role='user') ...
Event received: content=Content(parts=[Part(..., text='https://developers.google.com/maps/get-started#enable-api-sdk')], role='model') ...
Closing MCP server connection...
Cleanup complete.

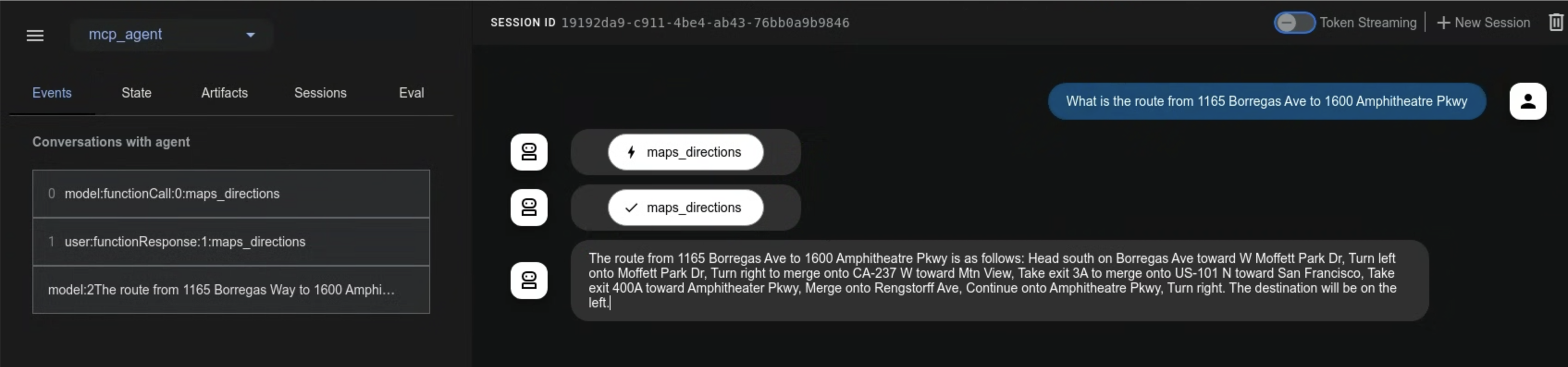

Example 2: Google Maps MCP Server

This follows the same pattern but targets the Google Maps MCP server.

Step 1: Get API Key and Enable APIs

Follow the directions at Use API keys to get a Google Maps API Key.

Enable Directions API and Routes API in your Google Cloud project. For instructions, see Getting started with Google Maps Platform topic.

Step 2: Update get_tools_async

Modify get_tools_async in agent.py to connect to the Maps server, passing your API key via the env parameter of StdioServerParameters.

# agent.py (modify get_tools_async and other parts as needed)
import asyncio
from dotenv import load_dotenv
from google.genai import types
from google.adk.agents.llm_agent import LlmAgent
from google.adk.runners import Runner
from google.adk.sessions import InMemorySessionService
from google.adk.artifacts.in_memory_artifact_service import InMemoryArtifactService # Optional
from google.adk.tools.mcp_tool.mcp_toolset import MCPToolset, SseServerParams, StdioServerParameters

load_dotenv('../.env')

async def get_tools_async():
  """ Step 1: Gets tools from the Google Maps MCP Server."""
  # IMPORTANT: Replace with your actual key
  google_maps_api_key = "YOUR_API_KEY_FROM_STEP_1"
  if "YOUR_API_KEY" in google_maps_api_key:
      raise ValueError("Please replace 'YOUR_API_KEY_FROM_STEP_1' with your actual Google Maps API key.")

  print("Attempting to connect to MCP Google Maps server...")
  tools, exit_stack = await MCPToolset.from_server(
      connection_params=StdioServerParameters(
          command='npx',
          args=["-y",
                "@modelcontextprotocol/server-google-maps",
          ],
          # Pass the API key as an environment variable to the npx process
          env={
              "GOOGLE_MAPS_API_KEY": google_maps_api_key
          }
      )
  )
  print("MCP Toolset created successfully.")
  return tools, exit_stack

# --- Step 2: Agent Definition ---
async def get_agent_async():
  """Creates an ADK Agent equipped with tools from the MCP Server."""
  tools, exit_stack = await get_tools_async()
  print(f"Fetched {len(tools)} tools from MCP server.")
  root_agent = LlmAgent(
      model='gemini-2.0-flash', # Adjust if needed
      name='maps_assistant',
      instruction='Help user with mapping and directions using available tools.',
      tools=tools,
  )
  return root_agent, exit_stack

# --- Step 3: Main Execution Logic (modify query) ---
async def async_main():
  session_service = InMemorySessionService()
  artifacts_service = InMemoryArtifactService() # Optional

  session = session_service.create_session(
      state={}, app_name='mcp_maps_app', user_id='user_maps'
  )

  # TODO: Use specific addresses for reliable results with this server
  query = "What is the route from 1600 Amphitheatre Pkwy to 1165 Borregas Ave"
  print(f"User Query: '{query}'")
  content = types.Content(role='user', parts=[types.Part(text=query)])

  root_agent, exit_stack = await get_agent_async()

  runner = Runner(
      app_name='mcp_maps_app',
      agent=root_agent,
      artifact_service=artifacts_service, # Optional
      session_service=session_service,
  )

  print("Running agent...")
  events_async = runner.run_async(
      session_id=session.id, user_id=session.user_id, new_message=content
  )

  async for event in events_async:
    print(f"Event received: {event}")

  print("Closing MCP server connection...")
  await exit_stack.aclose()
  print("Cleanup complete.")

if __name__ == '__main__':
  try:
    asyncio.run(async_main())
  except Exception as e:
      print(f"An error occurred: {e}")

Step 3: Observe the Result

Run the script from the adk_agent_samples directory (ensure your virtual environment is active):

cd ./adk_agent_samples
python3 ./mcp_agent/agent.py

A successful run will show events indicating the agent called the relevant Google Maps tool (likely related to directions or routes) and a final response containing the directions. An example is shown below.

User Query: 'What is the route from 1600 Amphitheatre Pkwy to 1165 Borregas Ave'
Attempting to connect to MCP Google Maps server...
# --> npx process starts...
MCP Toolset created successfully.
Fetched [N] tools from MCP server.
Running agent...
Event received: content=Content(parts=[Part(..., function_call=FunctionCall(name='get_directions', ...))], role='model') ...
Event received: content=Content(parts=[Part(..., function_response=FunctionResponse(name='get_directions', ...))], role='user') ...
Event received: content=Content(parts=[Part(..., text='Head north toward Amphitheatre Pkwy...')], role='model') ...
Closing MCP server connection...
Cleanup complete.

2. Building an MCP server with ADK tools (MCP server exposing ADK)

This pattern allows you to wrap ADK's tools and make them available to any standard MCP client application. The example in this section exposes the load_web_page ADK tool through the MCP server.

Summary of steps

You will create a standard Python MCP server application using the model-context-protocol library. Within this server, you will:

Instantiate the ADK tool(s) you want to expose (e.g., FunctionTool(load_web_page)).
Implement the MCP server's @app.list_tools handler to advertise the ADK tool(s), converting the ADK tool definition to the MCP schema using adk_to_mcp_tool_type.
Implement the MCP server's @app.call_tool handler to receive requests from MCP clients, identify if the request targets your wrapped ADK tool, execute the ADK tool's .run_async() method, and format the result into an MCP-compliant response (e.g., types.TextContent).

Prerequisites

Install the MCP server library in the same environment as ADK:

pip install mcp

Step 1: Create the MCP Server Script

Create a new Python file, e.g., adk_mcp_server.py.

Step 2: Implement the Server Logic

Add the following code, which sets up an MCP server exposing the ADK load_web_page tool.

# adk_mcp_server.py
import asyncio
import json
from dotenv import load_dotenv

# MCP Server Imports
from mcp import types as mcp_types # Use alias to avoid conflict with genai.types
from mcp.server.lowlevel import Server, NotificationOptions
from mcp.server.models import InitializationOptions
import mcp.server.stdio

# ADK Tool Imports
from google.adk.tools.function_tool import FunctionTool
from google.adk.tools.load_web_page import load_web_page # Example ADK tool
# ADK <-> MCP Conversion Utility
from google.adk.tools.mcp_tool.conversion_utils import adk_to_mcp_tool_type

# --- Load Environment Variables (If ADK tools need them) ---
load_dotenv()

# --- Prepare the ADK Tool ---
# Instantiate the ADK tool you want to expose
print("Initializing ADK load_web_page tool...")
adk_web_tool = FunctionTool(load_web_page)
print(f"ADK tool '{adk_web_tool.name}' initialized.")
# --- End ADK Tool Prep ---

# --- MCP Server Setup ---
print("Creating MCP Server instance...")
# Create a named MCP Server instance
app = Server("adk-web-tool-mcp-server")

# Implement the MCP server's @app.list_tools handler
@app.list_tools()
async def list_tools() -> list[mcp_types.Tool]:
  """MCP handler to list available tools."""
  print("MCP Server: Received list_tools request.")
  # Convert the ADK tool's definition to MCP format
  mcp_tool_schema = adk_to_mcp_tool_type(adk_web_tool)
  print(f"MCP Server: Advertising tool: {mcp_tool_schema.name}")
  return [mcp_tool_schema]

# Implement the MCP server's @app.call_tool handler
@app.call_tool()
async def call_tool(
    name: str, arguments: dict
) -> list[mcp_types.TextContent | mcp_types.ImageContent | mcp_types.EmbeddedResource]:
  """MCP handler to execute a tool call."""
  print(f"MCP Server: Received call_tool request for '{name}' with args: {arguments}")

  # Check if the requested tool name matches our wrapped ADK tool
  if name == adk_web_tool.name:
    try:
      # Execute the ADK tool's run_async method
      # Note: tool_context is None as we are not within a full ADK Runner invocation
      adk_response = await adk_web_tool.run_async(
          args=arguments,
          tool_context=None, # No ADK context available here
      )
      print(f"MCP Server: ADK tool '{name}' executed successfully.")
      # Format the ADK tool's response (often a dict) into MCP format.
      # Here, we serialize the response dictionary as a JSON string within TextContent.
      # Adjust formatting based on the specific ADK tool's output and client needs.
      response_text = json.dumps(adk_response, indent=2)
      return [mcp_types.TextContent(type="text", text=response_text)]

    except Exception as e:
      print(f"MCP Server: Error executing ADK tool '{name}': {e}")
      # Return an error message in MCP format
      # Creating a proper MCP error response might be more robust
      error_text = json.dumps({"error": f"Failed to execute tool '{name}': {str(e)}"})
      return [mcp_types.TextContent(type="text", text=error_text)]
  else:
      # Handle calls to unknown tools
      print(f"MCP Server: Tool '{name}' not found.")
      error_text = json.dumps({"error": f"Tool '{name}' not implemented."})
      # Returning error as TextContent for simplicity
      return [mcp_types.TextContent(type="text", text=error_text)]

# --- MCP Server Runner ---
async def run_server():
  """Runs the MCP server over standard input/output."""
  # Use the stdio_server context manager from the MCP library
  async with mcp.server.stdio.stdio_server() as (read_stream, write_stream):
    print("MCP Server starting handshake...")
    await app.run(
        read_stream,
        write_stream,
        InitializationOptions(
            server_name=app.name, # Use the server name defined above
            server_version="0.1.0",
            capabilities=app.get_capabilities(
                # Define server capabilities - consult MCP docs for options
                notification_options=NotificationOptions(),
                experimental_capabilities={},
            ),
        ),
    )
    print("MCP Server run loop finished.")

if __name__ == "__main__":
  print("Launching MCP Server exposing ADK tools...")
  try:
    asyncio.run(run_server())
  except KeyboardInterrupt:
    print("\nMCP Server stopped by user.")
  except Exception as e:
    print(f"MCP Server encountered an error: {e}")
  finally:
    print("MCP Server process exiting.")
# --- End MCP Server ---

Step 3: Test your MCP Server with ADK

Follow the same instructions in “Example 1: File System MCP Server” and create a MCP client. This time use your MCP Server file created above as input command:

# ./adk_agent_samples/mcp_agent/agent.py

# ...

async def get_tools_async():
  """Gets tools from the File System MCP Server."""
  print("Attempting to connect to MCP Filesystem server...")
  tools, exit_stack = await MCPToolset.from_server(
      # Use StdioServerParameters for local process communication
      connection_params=StdioServerParameters(
          command='python3', # Command to run the server
          args=[
                "/absolute/path/to/adk_mcp_server.py"],
      )
  )

Execute the agent script from your terminal similar to above (ensure necessary libraries like model-context-protocol and google-adk are installed in your environment):

cd ./adk_agent_samples
python3 ./mcp_agent/agent.py

The script will print startup messages and then wait for an MCP client to connect via its standard input/output to your MCP Server in adk_mcp_server.py. Any MCP-compliant client (like Claude Desktop, or a custom client using the MCP libraries) can now connect to this process, discover the load_web_page tool, and invoke it. The server will print log messages indicating received requests and ADK tool execution. Refer to the documentation, to try it out with Claude Desktop.

Key considerations

When working with MCP and ADK, keep these points in mind:

Protocol vs. Library: MCP is a protocol specification, defining communication rules. ADK is a Python library/framework for building agents. MCPToolset bridges these by implementing the client side of the MCP protocol within the ADK framework. Conversely, building an MCP server in Python requires using the model-context-protocol library.
ADK Tools vs. MCP Tools:
- ADK Tools (BaseTool, FunctionTool, AgentTool, etc.) are Python objects designed for direct use within the ADK's LlmAgent and Runner.
- MCP Tools are capabilities exposed by an MCP Server according to the protocol's schema. MCPToolset makes these look like ADK tools to an LlmAgent.
- Langchain/CrewAI Tools are specific implementations within those libraries, often simple functions or classes, lacking the server/protocol structure of MCP. ADK offers wrappers (LangchainTool, CrewaiTool) for some interoperability.
Asynchronous nature: Both ADK and the MCP Python library are heavily based on the asyncio Python library. Tool implementations and server handlers should generally be async functions.
Stateful sessions (MCP): MCP establishes stateful, persistent connections between a client and server instance. This differs from typical stateless REST APIs.
- Deployment: This statefulness can pose challenges for scaling and deployment, especially for remote servers handling many users. The original MCP design often assumed client and server were co-located. Managing these persistent connections requires careful infrastructure considerations (e.g., load balancing, session affinity).
- ADK MCPToolset: Manages this connection lifecycle. The exit_stack pattern shown in the examples is crucial for ensuring the connection (and potentially the server process) is properly terminated when the ADK agent finishes.

Model Context Protocol Tools

What is Model Context Protocol (MCP)?

Prerequisites

1. Using MCP servers with ADK agents (ADK as an MCP client)

MCPToolset class

Example 1: File System MCP Server

Step 1: Attach the MCP Server to your ADK agent via MCPToolset

Step 2: Observe the result

Example 2: Google Maps MCP Server

Step 1: Get API Key and Enable APIs

Step 2: Update get_tools_async

Step 3: Observe the Result

2. Building an MCP server with ADK tools (MCP server exposing ADK)

Summary of steps

Prerequisites

Step 1: Create the MCP Server Script

Step 2: Implement the Server Logic

Step 3: Test your MCP Server with ADK

Key considerations

Further Resources

`MCPToolset` class

Step 1: Attach the MCP Server to your ADK agent via `MCPToolset`
