FHIR Engine Library Benchmarks

Benchmarks have been added in the FHIR Engine Library to help track performance regressions and areas for performance improvement.

The FHIR Engine Library has the following benchmark modules

  1. app - configurable android application for testing and running benchmarks
  2. microbenchmark - Jetpack Microbenchmark module
  3. macrobenchmark - Jetpack Macrobenchmark module to automate testing large-scale user-facing apis with the benchmark app

App module

Located in the module :engine:benchmarks:app The FHIR Engine Library Benchmark app runs benchmarks for the FHIR Engine Library APIs including Data Access API, Search API and Sync API.

It can be configured to run the benchmarks for different population sizes whereby population refers to the number of Patients and their associated data

Configuration

The benchmark app requires that the dataset that is to be benchmarked on be added in the assets/bulk_data folder as .ndjson formatted files; whereby each line refers to a single FHIR resource

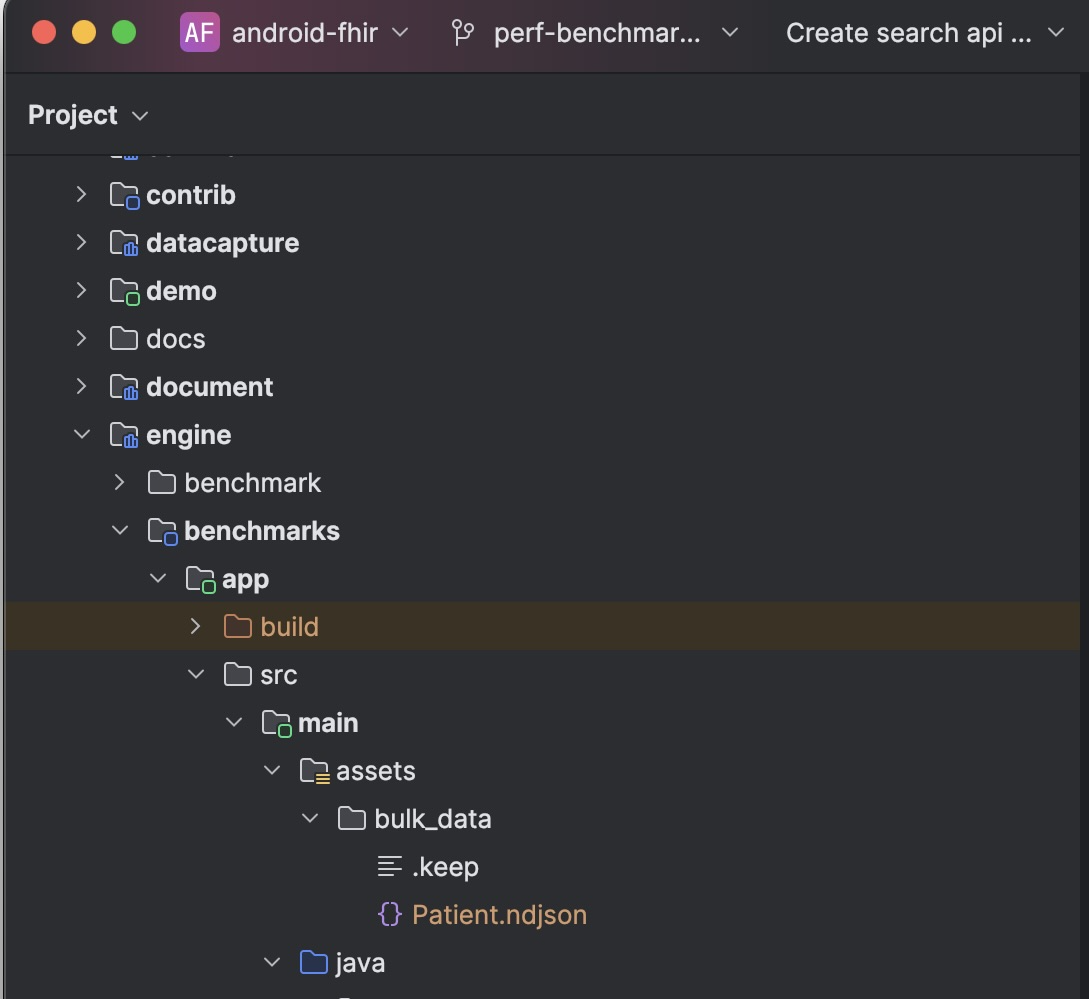

Path to bulk data

The dataset can be from an external source. Within the repository, there is a script to generate synthetic data that could then be used for benchmarking.

./gradlew :engine:benchmarks:app:generateSynthea -Ppopulation=1000

It generates synthetic data with a population size of 1000. The population parameter determines the population size that would be used to generate the data

Running

To run this app in Android Studio, create a run/debug configuration for the :engine:benchmarks:app module using the Android App template and run the app using the configuration.

Change the build variant to benchmark for an optimised version of the app, for the best results

Alternatively, run the following command to build and install the benchmark APK on your device/emulator:

./gradlew :engine:benchmarks:app:installBenchmark

Microbenchmark module

Contains test cases that evaluate the performance of individual tasks executed for the first time directly on hardware, located in the module :engine:benchmarks:microbenchmark.

The test cases are designed to run in sequence of their alphabetic order to make sure larger tasks do not build cache for smaller ones. Their class names are prefixed by an extra letter to inform their position relative to others in the list.

Running

In Android Studio, set your build variants to release and run your benchmark as you would any @Test using the gutter action next to your test class or method.

gutter test action

The results will be similar to this:

1,297,374       ns        5345 allocs    trace    EngineDatabaseBenchmark.createAndGet
1,114,474,793   ns     4922289 allocs    trace    FhirSyncWorkerBenchmark.oneTimeSync_50patients
15,251,125      ns      100542 allocs    trace    FhirSyncWorkerBenchmark.oneTimeSync_1patient
179,806,709     ns      986017 allocs    trace    FhirSyncWorkerBenchmark.oneTimeSync_10patients
1,451,758       ns       11883 allocs    trace    GzipUploadInterceptorBenchmark.upload_10patientsWithGzip
1,537,559       ns       11829 allocs    trace    GzipUploadInterceptorBenchmark.upload_10patientsWithoutGzip
73,640,833      ns     1074360 allocs    trace    GzipUploadInterceptorBenchmark.upload_1000patientsWithGzip
7,493,642       ns      108428 allocs    trace    GzipUploadInterceptorBenchmark.upload_100patientsWithoutGzip
7,799,264       ns      108465 allocs    trace    GzipUploadInterceptorBenchmark.upload_100patientsWithGzip
71,189,333      ns     1074466 allocs    trace    GzipUploadInterceptorBenchmark.upload_1000patientsWithoutGzip

Alternatively, from the command line, run the connectedCheck to run all of the tests from specified Gradle module:

./gradlew :engine:benchmarks:microbenchmark:connectedReleaseAndroidTest

In this case, results will be saved to the outputs/androidTest-results/connected/<device>/test-result.pb. To visualize on Android Studio, click Run / Import Tests From File and find the .pb file

Continuous Integration (CI)

Configuration

Microbenchmark tests are configured to run in Kokoro and use Fladle plugin, configured through Project.configureFirebaseTestLabForMicroBenchmark in file buildSrc/src/main/kotlin/FirebaseTestLabConfig.kt

Accessing the benchmark results

The Microbenchmark results can be accessed through the following steps

  1. Click to View details of the Kokoro: Build and Device Tests PR Kokoro view details

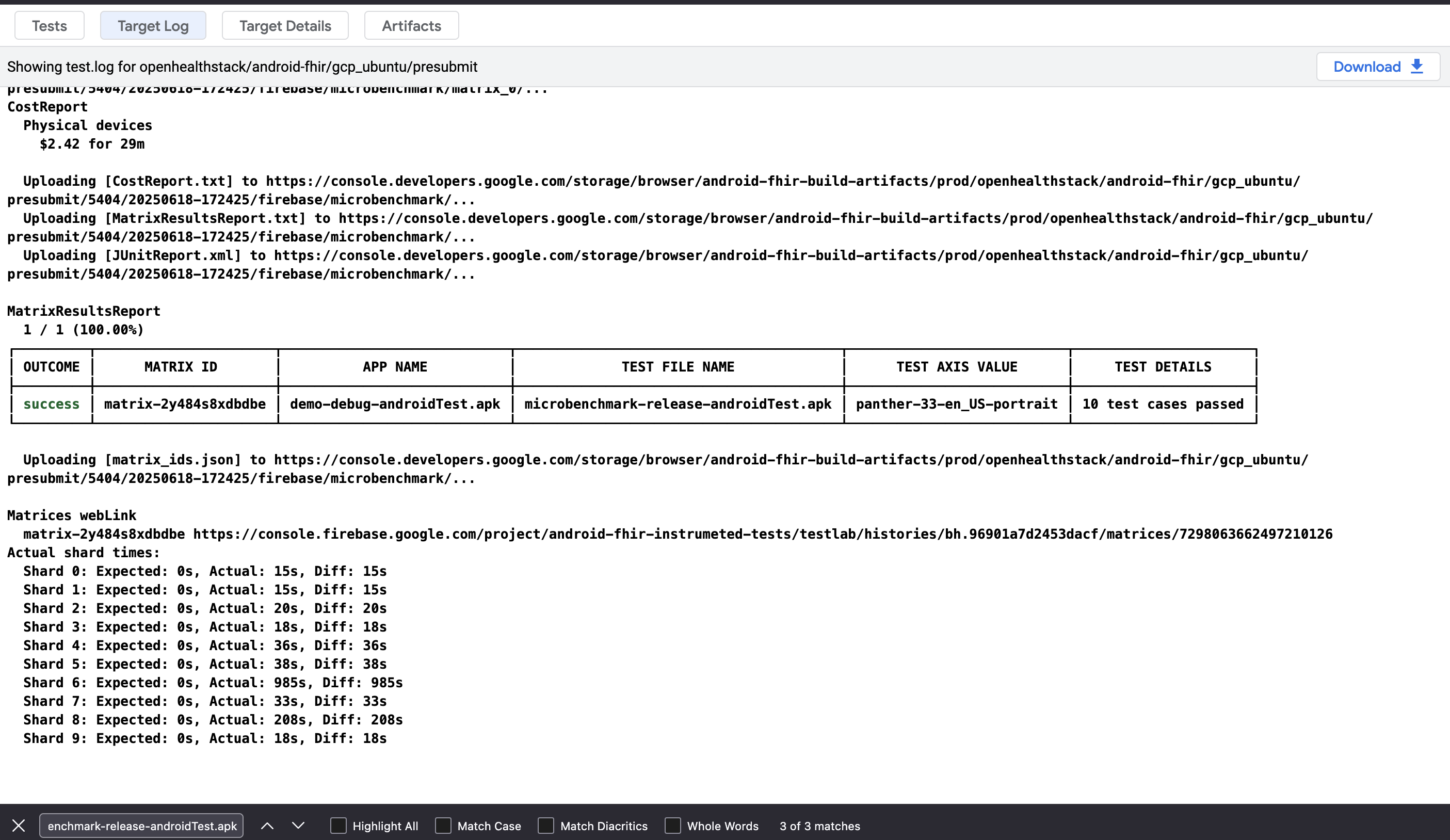

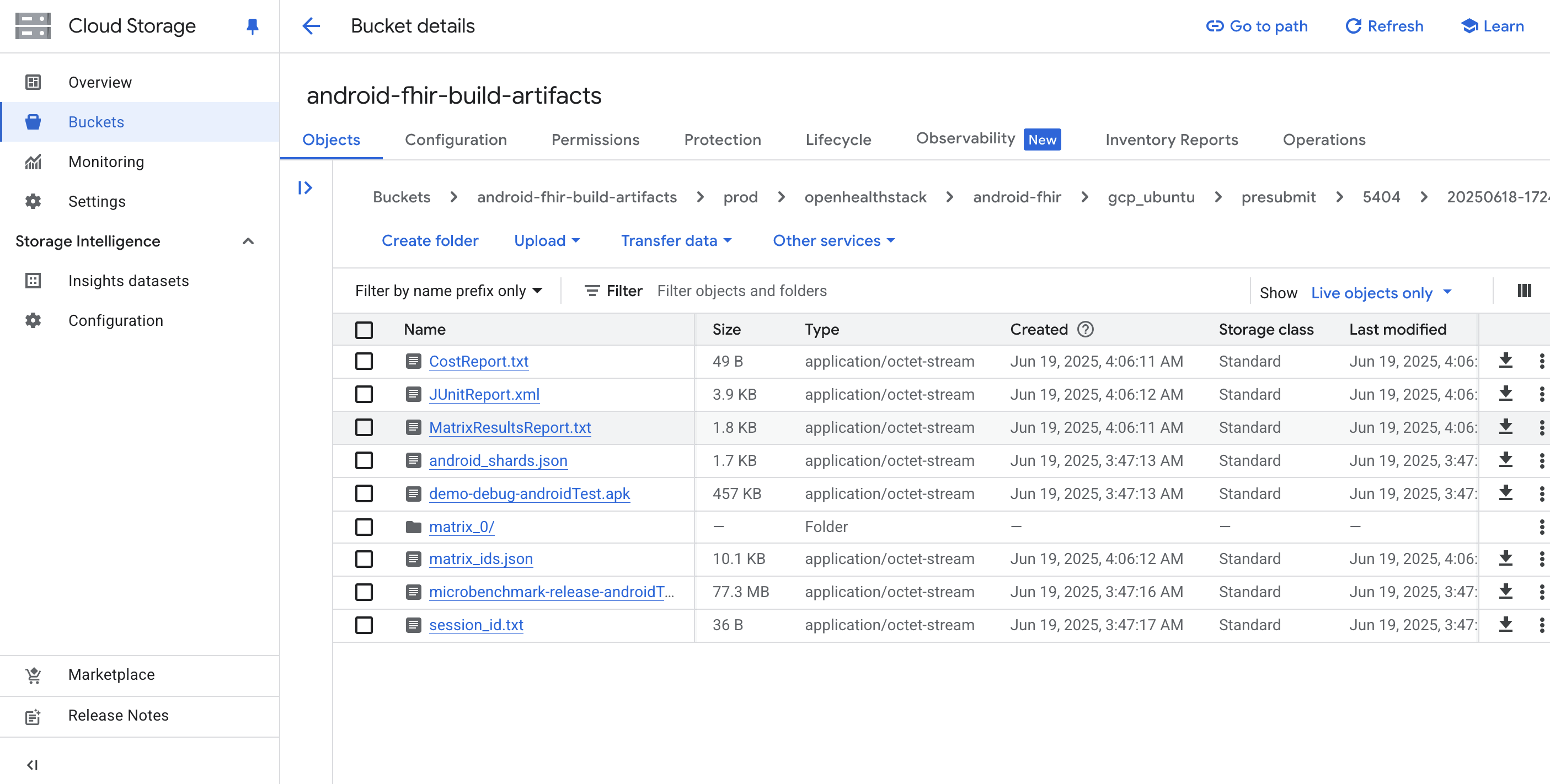

The details page would look similar to Kokoro details 2. Within the Target Log tab, locate for the section Microbenchmark section with the TEST FILE NAME microbenchmark-release-androidTest.apk 3. Select and visit the Google Bucket url that looks as similar to https://console.developers.google.com/storage/browser/android-fhir-build-artifacts/prod/openhealthstack/android-fhir/gcp_ubuntu/presubmit/5404/20250618-172425/firebase/microbenchmark that navigates to the android-fhir-build-artifacts bucket 4. Navigate to matrix_0/panther-33-en_US-portrait-test_results_merged.xml to download the benchmark .xml results file. The panther-33-en_US-portrait in the path refers to the Firebase Test Lab device/shard used in running the benchmark tests.

Macrobenchmark module

The FHIR Engine Library macrobenchmark tests are located in the module :engine:benchmarks:macrobenchmark.

Set Up

  1. Set up the FHIR Engine Library Benchmark App with the relevant data

  2. Start the local Hapi server

Execute

```shell
sh benchmark-start-server.sh
```

The script uses Docker to start up a container with the image from Hapi.

It runs the docker image with the default configuration, mapping port 8080 from the container to port 8080 in the host.

Once running, you can access http://localhost:8080/ in the browser to access the HAPI FHIR server's UI or use http://localhost:8080/fhir/ as the base URL for your REST requests 3. Populate the Hapi server with data generated from Synthea

Execute

```shell
sh benchmark-populate-server.sh 100 0.0.0.0:8080
```

This generates Synthea data for a population of 100 patients and uploads the data to the local Hapi server started at port 8080 4. Check that the Android device and the host computer are connected to the same network 5. Get the host machine's domain or LAN IP address

For mac

```shell
hostname
```

For linux

```shell
hostname -I | awk '{print $1}'
```
  1. Update local.properties file, located in the root folder, with the server url

    properties FHIR_SERVER_BASE_URL=http://192.168.0.24:8080/fhir/

replacing 192.168.0.24 with your domain/address 7. Run Gradle sync 8. Run the Macrobenchmark tests in the engine:benchmarks:macrobenchmark module

Execute

shell ./gradlew :engine:benchmarks:macrobenchmark:connectedCheck

The JSON results are automatically copied from the device to the host. These are written on the host machine in the location engine/benchmarks/macrobenchmark/build/outputs/connected_android_test_additional_output/benchmark/connected/device_id/

  1. After all the tests are complete, you can stop the benchmark server

shell sh benchmark-populate-server.sh

For reliable benchmarks:

  • Use physical devices: Emulators won’t give you consistent, real-world data.
  • Kill all background services: Anything running outside your app adds noise.
  • Lock the device state: Keep the brightness, network and battery levels consistent.

Continuous Integration (CI)

Configuration

The FHIR Engine Macrobenchmarks have been configured to run in Kokoro and use FirebaseTestLab physical devices

Configuration for the Kokoro script are currently located in kokoro/gcp_ubuntu/kokoro_build.sh while the FirebaseTestLab testing is configured through the Fladle plugin in buildSrc/src/main/kotlin/FirebaseTestLabConfig.kt

Accessing the benchmark results

From a GitHub PR , the following steps could be used to download the benchmark results from a Kokoro run

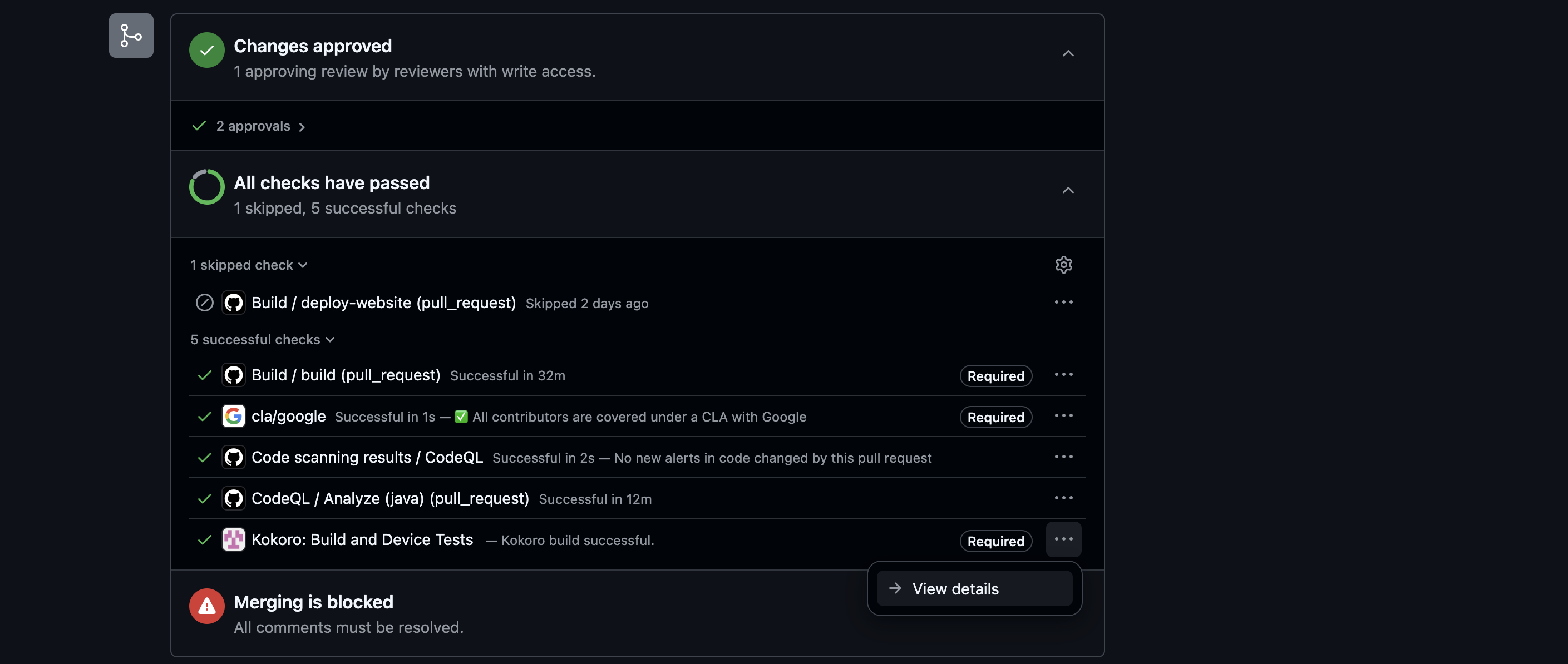

  1. Click to View details of the Kokoro: Build and Device Tests PR Kokoro view details

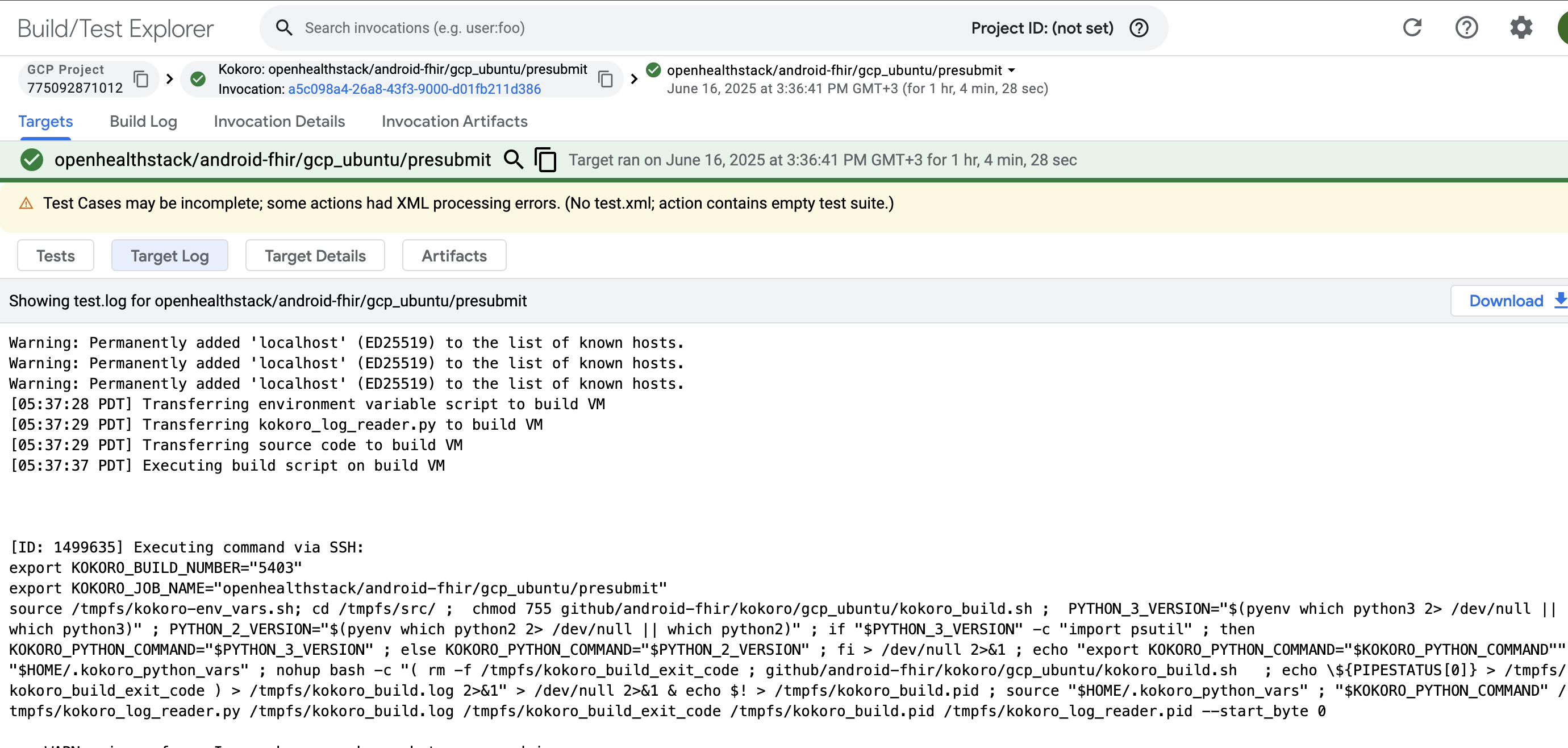

The details page would look similar to Kokoro details

  1. Within the Target Log tab, locate for the section Macrobenchmark section with the TEST FILE NAME macrobenchmark-benchmark.apk

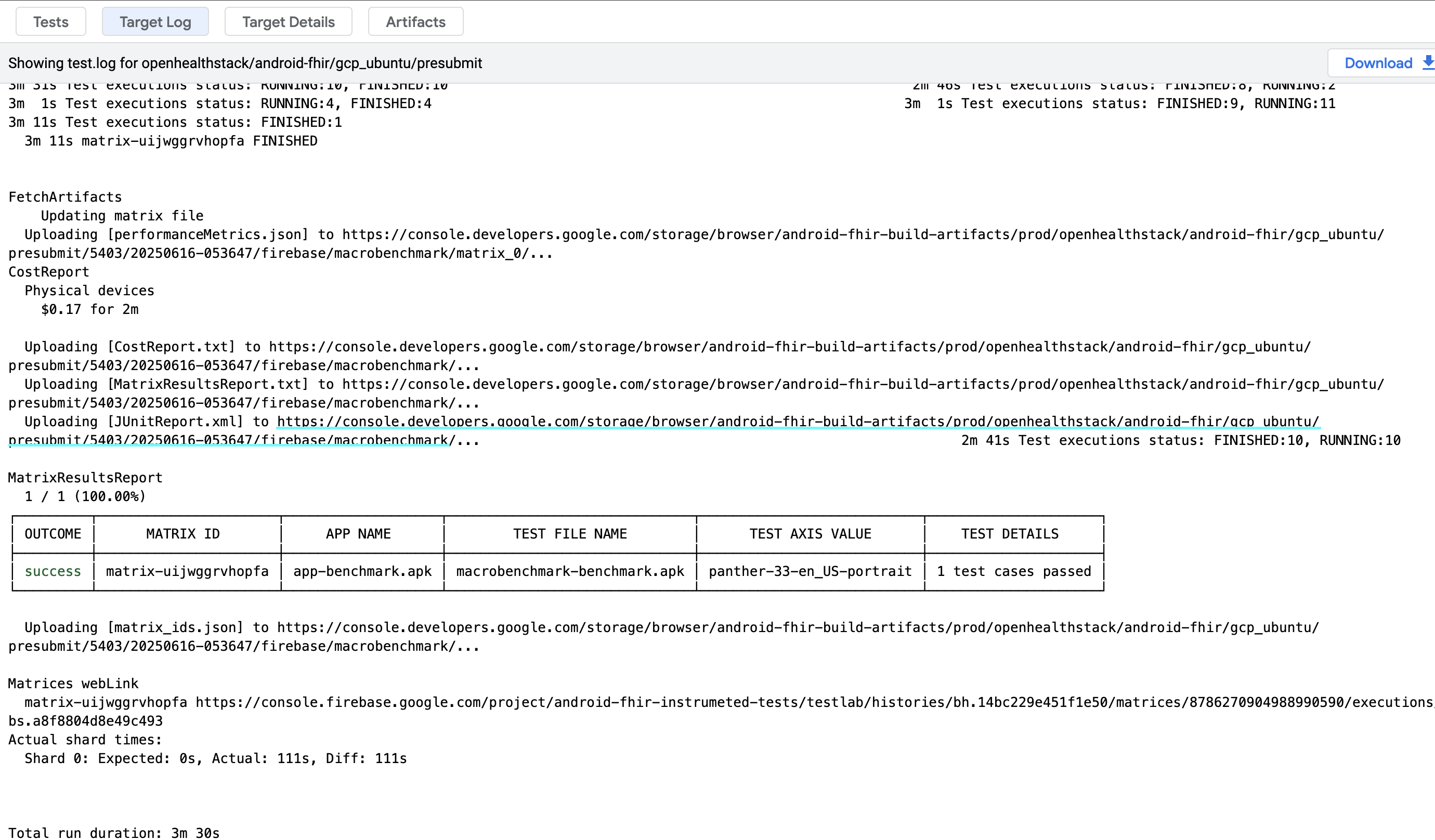

  2. Select and visit the url as referenced in image Reference url representative of the Google Cloud Bucket containing the artifacts from the Kokoro run. From the image example, the url is https://console.developers.google.com/storage/browser/android-fhir-build-artifacts/prod/openhealthstack/android-fhir/gcp_ubuntu/presubmit/5403/20250616-053647/firebase/macrobenchmark

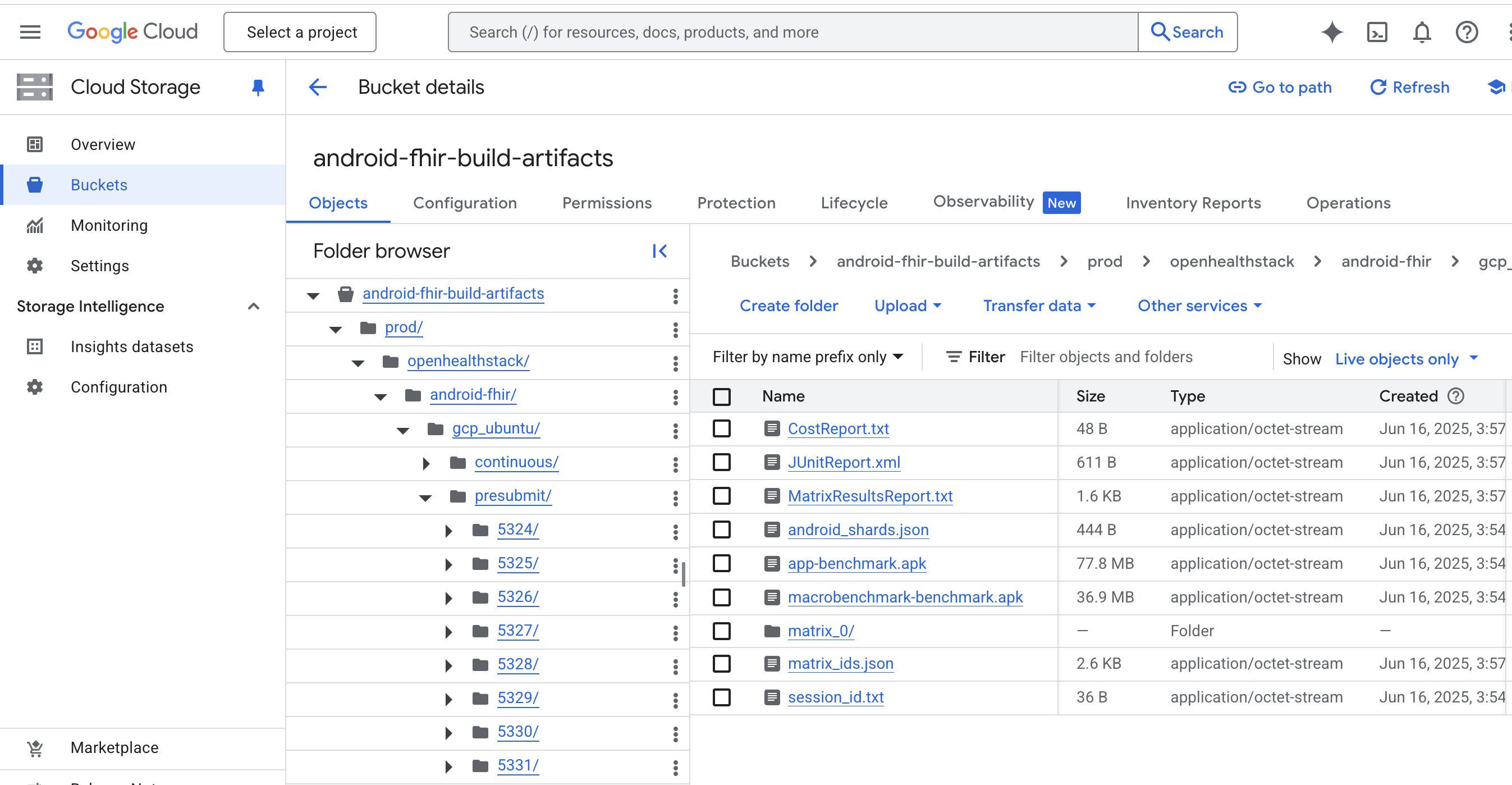

The bucket page would look similar to Artifacts bucket page

  1. Navigate to matrix_0/panther-33-en_US-portrait/artifacts/sdcard/Download/com.google.android.fhir.engine.macrobenchmark-benchmarkData.json to download the benchmark results file. The panther-33-en_US-portrait in the path represents the Firebase Test Lab device/shard that was used to run the benchmark tests.

Sample Benchmark Results

The results shared below are generated from running the FHIR Engine Library Macrobenchmark tests in Kokoro

Panther - Google Pixel 7

CPU - Octa-core (2x2.85 GHz Cortex-X1 & 2x2.35 GHz Cortex-A78 & 4x1.80 GHz Cortex-A55)

RAM - 8GB

API 33

Data Access API results

Generated from execution of FhirEngineCrudBenchmark test in the engine:benchmarks:macrobenchmark module located at engine/benchmarks/macrobenchmark/src/main/java/com/google/android/fhir/engine/macrobenchmark/FhirEngineCrudBenchmark.kt

API Average duration (ms) Notes
create ~4.7 Takes ~47s for population size of 10k
update ~12.29
get ~3.83
delete ~8.08
Search DSL API

Generated from the execution of the FhirEngineSearchApiBenchmark test in the file engine/benchmarks/macrobenchmark/src/main/java/com/google/android/fhir/engine/macrobenchmark/FhirEngineSearchApiBenchmark.kt.

*Data preloaded contains Patients with associated resources; Encounters/Practitioners/Organization/Location

Population size Average duration (ms)
∣ϵ∣≤20 ms
Notes
searchPatientGivenWithDisjunctValues 10k ~34.47
searchEncounterLocalLastUpdated 10k ~428.07
searchPatientHasEncounter 10k ~104.66
searchPatientSortedByBirthDate 10k ~612.62
searchPatientSortedByName 10k ~497.06
searchPatientWithIncludeGeneralPractitioner 10k ~9.53
searchPatientWithRevIncludeConditions 10k ~8.32
searchPatientIdWithTokenIdentifier 10k ~11.11
searchPatientWithEitherGivenNameOrBirthDate 10k ~16.17
searchPatientWithEitherGivenNameOrIndexNumber 10k ~15.61
searchWithTypeDateSearchParameter 10k ~5.65
searchWithTypeNumberSearchParameter 10k ~1.68
searchWithTypeQuantitySearchParameter 10k ~3.12
searchWithTypeStringSearchParameter 10k ~24.49
