Hungarian Chickenpox Tutorial

# Download latest version of bayesnf.
!pip install bayesnf

# Install Python libraries for plotting.
!pip -q install cartopy
!pip -q install contextily
!pip -q install geopandas

# Load the shape file for geopandas visualization.
!wget -q https://www.geoboundaries.org/data/1_3_3/zip/shapefile/HUN/HUN_ADM1.shp.zip
!unzip -oq HUN_ADM1.shp.zip

import warnings
warnings.simplefilter('ignore')

import contextily as ctx
import geopandas as gpd
import jax
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

from cartopy import crs as ccrs
from shapely.geometry import Point
from mpl_toolkits.axes_grid1 import make_axes_locatable

Loading and Plotting Data

We analyze the Hungarian Chickenpox Cases spatiotemporal dataset from the UCI machine learning repository https://archive.ics.uci.edu/dataset/580/hungarian+chickenpox+cases. The data contains 20 county-level time series of weekly chickenpox cases in Hungary between 2005 and 2015.

!wget -q https://cs.cmu.edu/~fsaad/assets/bayesnf/chickenpox.5.train.csv
df_train = pd.read_csv('chickenpox.5.train.csv', index_col=0, parse_dates=['datetime'])

BayesNF excepts dataframe to be in "long" format. That is, each row shows a single observation (chickenpox column) at a given point in time (datetime column) and in space (latitude and longitude columns, which show the centroid of the county). The location column is metadata that provides a human-readable name for the county at which measurement was recorded.

df_train.head(20)

	location	datetime	latitude	longitude	chickenpox
1044	BACS	2005-01-03	46.568416	19.379846	30
1045	BACS	2005-01-10	46.568416	19.379846	30
1046	BACS	2005-01-17	46.568416	19.379846	31
1047	BACS	2005-01-24	46.568416	19.379846	43
1048	BACS	2005-01-31	46.568416	19.379846	53
1049	BACS	2005-02-07	46.568416	19.379846	77
1050	BACS	2005-02-14	46.568416	19.379846	54
1051	BACS	2005-02-21	46.568416	19.379846	64
1052	BACS	2005-02-28	46.568416	19.379846	57
1053	BACS	2005-03-07	46.568416	19.379846	129
1054	BACS	2005-03-14	46.568416	19.379846	81
1055	BACS	2005-03-21	46.568416	19.379846	51
1056	BACS	2005-03-28	46.568416	19.379846	98
1057	BACS	2005-04-04	46.568416	19.379846	59
1058	BACS	2005-04-11	46.568416	19.379846	84
1059	BACS	2005-04-18	46.568416	19.379846	62
1060	BACS	2005-04-25	46.568416	19.379846	120
1061	BACS	2005-05-02	46.568416	19.379846	81
1062	BACS	2005-05-09	46.568416	19.379846	103
1063	BACS	2005-05-16	46.568416	19.379846	86

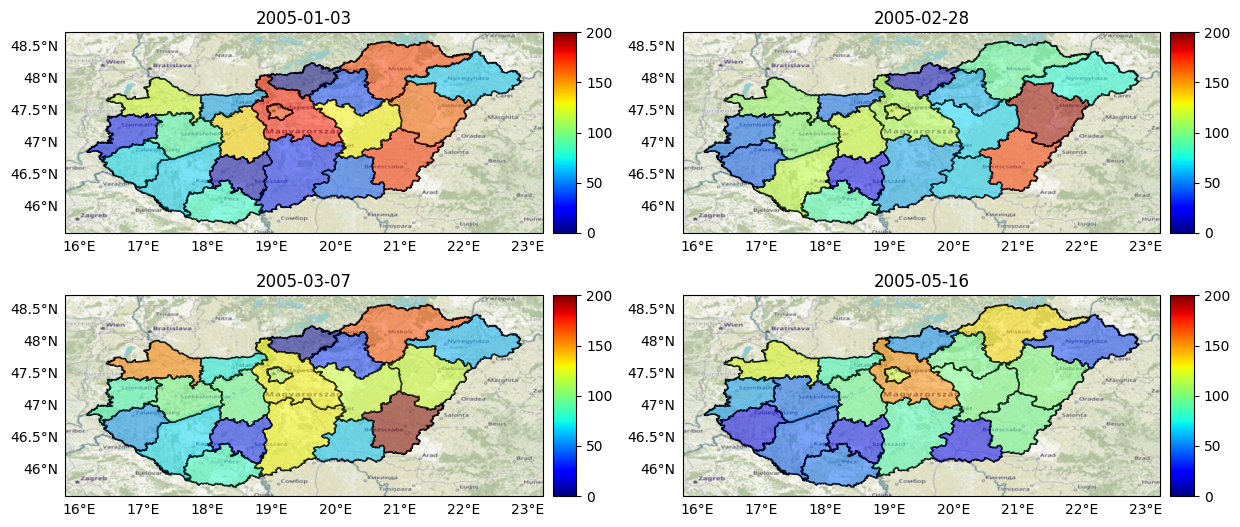

We can use the geopandas library to plot snapshots the data over the spatial field at different points in time.

# Create a dataframe for plotting using geopandas.
hungary = gpd.read_file('HUN_ADM1.shp')
df_plot = df_train.copy()
df_plot['centroid'] = df_plot[['longitude','latitude']].apply(Point, axis=1)
centroid_to_polygon = {
    c: next(g for g in hungary.geometry.values if g.contains(c))
    for c in set(df_plot['centroid'])
    }
df_plot['boundary'] = df_plot['centroid'].replace(centroid_to_polygon)

# Helper function to plot a single map.
def plot_map(date, ax):
  # Plot basemap.
  hungary.plot(color='none', edgecolor='black', linewidth=1, ax=ax)
  ctx.add_basemap(ax, crs=hungary.crs.to_string(), attribution='', zorder=-1)
  # Make legend axes.
  divider = make_axes_locatable(ax)
  cax = divider.append_axes('right', size='5%', pad='2%', axes_class=plt.matplotlib.axes.Axes)
  # Set date
  # Plot stations.
  df_plot_geo = gpd.GeoDataFrame(df_plot, geometry='boundary')
  df_plot_geo_t0 = df_plot_geo[df_plot_geo.datetime==date]
  df_plot_geo_t0.plot(
      column='chickenpox', alpha=.5, vmin=0, vmax=200, edgecolor='k',
      linewidth=1, legend=True, cmap='jet', cax=cax, ax=ax)
  gl = ax.gridlines(draw_labels=True, alpha=0)
  gl.top_labels = False
  gl.right_labels = False
  ax.set_title(date)

fig, axes = plt.subplots(
    nrows=2, ncols=2, subplot_kw={'projection': ccrs.PlateCarree()},
    figsize=(12.5, 12.5), tight_layout=True)

dates = ['2005-01-03', '2005-02-28', '2005-03-07', '2005-05-16']
for ax, date in zip(axes.flat, dates):
  plot_map(date, ax)

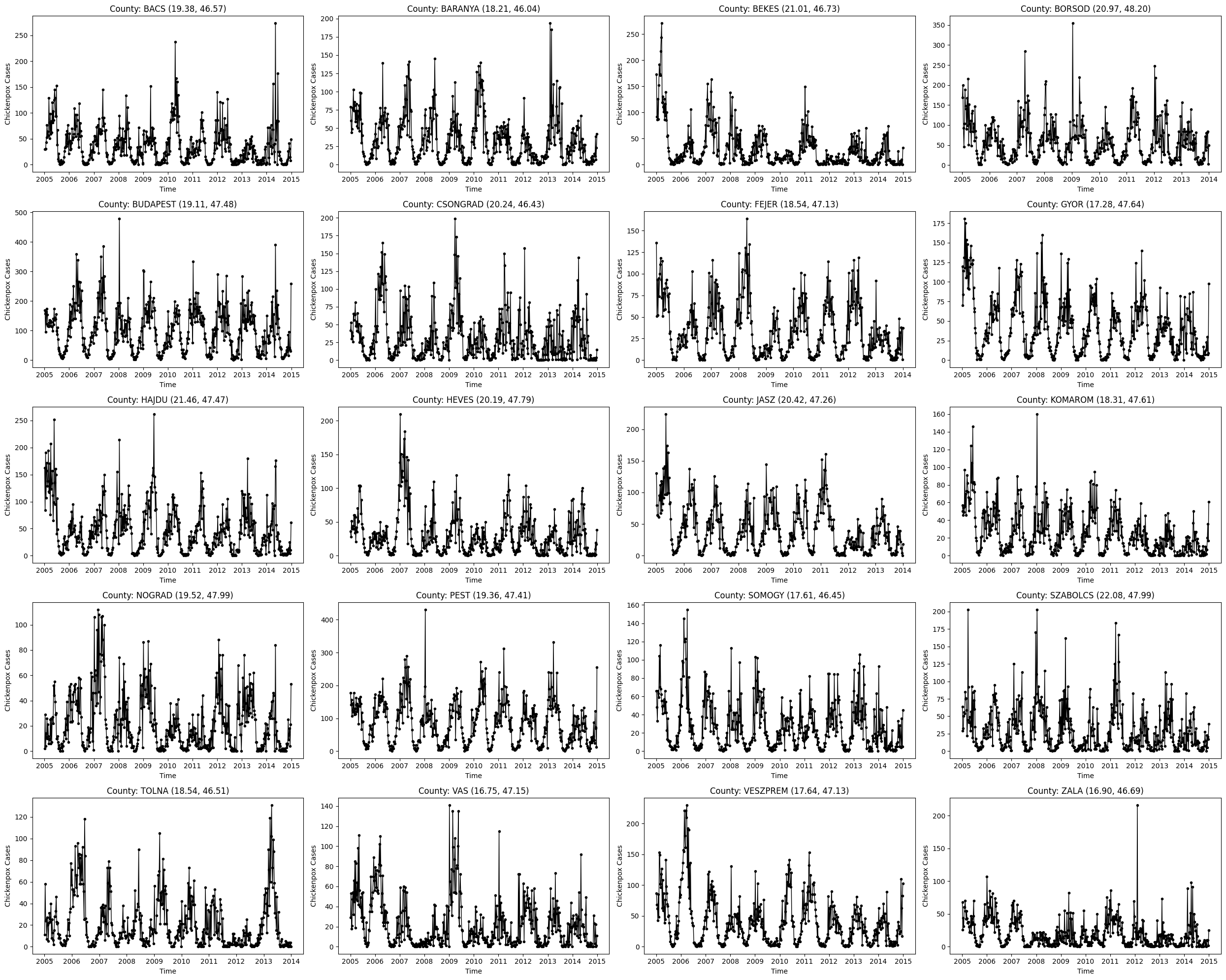

We can also plot the observed time series at each of the 20 spatial locations. The data clarify several patterns:

• There is a low-frequency (annual) seasonal effect.
• There is possibly a higher-frequency (monthly) seasonal effect.
• Locations closer in space demonstrate the strongest cross-covariance.
• As the data is not normalized per-capita, the amplitude of the time series (on the y-axes) generally vary across counties.

locations = df_train.location.unique()
fig, axes = plt.subplots(ncols=4, nrows=5, tight_layout=True, figsize=(25,20))
for ax, location in zip(axes.flat, locations):
  df_location = df_train[df_train.location==location]
  latitude, longitude = df_location.iloc[0][['latitude', 'longitude']]
  ax.plot(df_location.datetime, df_location.chickenpox, marker='.', color='k', linewidth=1)
  ax.set_title(f'County: {location} ({longitude:.2f}, {latitude:.2f})')
  ax.set_xlabel('Time')
  ax.set_ylabel('Chickenpox Cases')

Spatiotemporal Prediction with BayesNF

The next step is to construct a BayesNF model . Since this dataset consists of areal (or lattice) measurements, we represent the spatial locations using the centroid (in (latitude, longitude) coordinates) of each county.

Building an Estimator

BayesNF provides three different estimation methods:

• BayesianNeuralFieldMAP estimator, which performs inference using stochastic ensembles of maximum-a-posteriori estimates.

• BayesianNeuralFieldVI which uses ensemble of posterior surrogates learned using variational Bayesian inference.

• BayesianNeuralFieldMLE, which uses an ensemble of maximum likelihood estimates.

All of these estimators satisfy the same API of the abstract BayesianNeuralFieldEstimator class.

We will use the MAP version in this tutorial.

from bayesnf.spatiotemporal import BayesianNeuralFieldMAP

model = BayesianNeuralFieldMAP(
  width=256,
  depth=2,
  freq='W',
  seasonality_periods=['M', 'Y'], # equivalent to [365.25/12, 365.25]
  num_seasonal_harmonics=[2, 10], # two harmonics for M; one harmonic for Y
  feature_cols=['datetime', 'latitude', 'longitude'], # time, spatial 1, ..., spatial n
  target_col='chickenpox',
  observation_model='NORMAL',
  timetype='index',
  standardize=['latitude', 'longitude'],
  interactions=[(0, 1), (0, 2), (1, 2)],
  )

Fitting the Estimator

All three estimators provide a .fit method, with slightly different signatures. The configuration below trains an ensemble comprised of 64 particles for 5000 epochs. These commands require ~120 seconds on a TPU v3-8; the ensemble_size and num_epochs values should be adjusted depending on the available resources.

# Train MAP ensemble
model = model.fit(
    df_train,
    seed=jax.random.PRNGKey(0),
    ensemble_size=64,
    num_epochs=5000,
    )

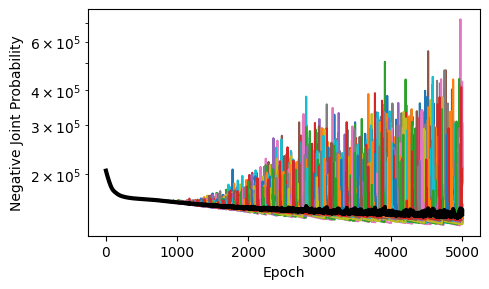

Plotting Training Loss

Plotting training loss gives us a sense of convergence of the learning dynamics and agreement among differnet members of the ensemble.

# Inspect the training loss for each particle.
import matplotlib.pyplot as plt
losses = np.row_stack(model.losses_)
fig, ax = plt.subplots(figsize=(5, 3), tight_layout=True)
ax.plot(losses.T)
ax.plot(np.mean(losses, axis=0), color='k', linewidth=3)
ax.set_xlabel('Epoch')
ax.set_ylabel('Negative Joint Probability')
ax.set_yscale('log', base=10)

Making Predictions

The predict method takes in

1. a test data frame, with the same format as the training data frame, except without the target column;

2. quantiles, which are a list of numbers between 0 and 1.

It returns mean predictions yhat and the requested quantiles yhat_quantiles. The yhat estimates are returned separately for each member of the ensemble whereas the yhat_quantiles estimates are computed across the entire ensemble.

!wget -q https://cs.cmu.edu/~fsaad/assets/bayesnf/chickenpox.5.test.csv
df_test = pd.read_csv('chickenpox.5.test.csv', index_col=0, parse_dates=['datetime'])
yhat, yhat_quantiles = model.predict(df_test, quantiles=(0.025, 0.5, 0.975))

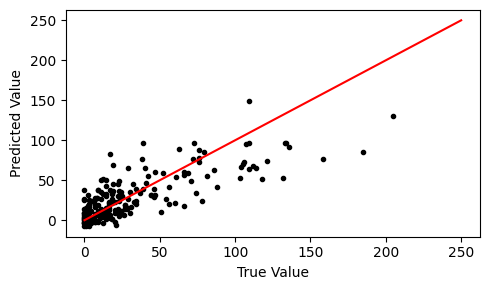

It is helpful to show a scatter plot of the true vs predicted values on the test data. We will plot the median predictions yhat_quantiles[1] versus the true chickenpox value.

fig, ax = plt.subplots(figsize=(5,3), tight_layout=True)
ax.scatter(df_test.chickenpox, yhat_quantiles[1], marker='.', color='k')
ax.plot([0, 250], [0, 250], color='red')
ax.set_xlabel('True Value')
ax.set_ylabel('Predicted Value')

Text(0, 0.5, 'Predicted Value')

We can also show the forecats on the held-out data for each of the four counties in the test set.

locations = df_test.location.unique()
fig, axes = plt.subplots(nrows=2, ncols=len(locations)//2, tight_layout=True, figsize=(16,8))
for ax, location in zip(axes.flat, locations):
  y_train = df_train[df_train.location==location]
  y_test = df_test[df_test.location==location]
  ax.scatter(y_train.datetime[-100:], y_train.chickenpox[-100:], marker='o', color='k', label='Observations')
  ax.scatter(y_test.datetime, y_test.chickenpox, marker='o', edgecolor='k', facecolor='w', label='Test Data')
  mask = df_test.location.to_numpy() == location
  ax.plot(y_test.datetime, yhat_quantiles[1][mask], color='red', label='Meidan Prediction')
  ax.fill_between(y_test.datetime, yhat_quantiles[0][mask], yhat_quantiles[2][mask], alpha=0.5, label='95% Prediction Interval')
  ax.set_title('Test Location: %s' % (location,))
  ax.set_xlabel('Time')
  ax.set_ylabel('Flu Cases')
axes.flat[0].legend(loc='upper left')

<matplotlib.legend.Legend at 0x7f0797df1690>
