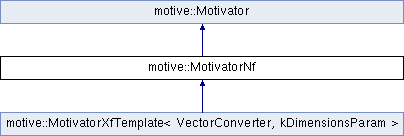

Inheritance diagram for motive::MotivatorNf:

Public Member Functions
	MotivatorNf ()

	MotivatorNf (const MotivatorInit &init, MotiveEngine *engine, MotiveDimension dimensions)

	MotivatorNf (const MotivatorInit &init, MotiveEngine engine, MotiveDimension dimensions, const MotiveTarget1f ts)

void	Initialize (const MotivatorInit &init, MotiveEngine *engine, MotiveDimension dimensions)

void	InitializeWithTargets (const MotivatorInit &init, MotiveEngine engine, MotiveDimension dimensions, const MotiveTarget1f targets)

void	InitializeWithTargetShape (const MotivatorInit &init, MotiveEngine engine, MotiveDimension dimensions, const MotiveCurveShape &shape, const float target_values, const float *target_velocities)

void	InitializeWithSplines (const MotivatorInit &init, MotiveEngine engine, MotiveDimension dimensions, const CompactSpline splines, const SplinePlayback &playback)

const float *	Values () const

void	Velocities (float *out) const

void	Directions (float *out) const

void	TargetValues (float *out) const

void	TargetVelocities (float *out) const

void	Differences (float *out) const

MotiveTime	TargetTime () const

MotiveCurveShape	MotiveShape () const
	Returns the shape of the current curve.

MotiveTime	SplineTime () const

void	Splines (const CompactSpline **splines) const

void	SetSpline (const CompactSpline &spline, const SplinePlayback &playback)

void	SetSplines (const CompactSpline *splines, const SplinePlayback &playback)

void	SetSplineTime (MotiveTime time)

void	SetSplinePlaybackRate (float playback_rate)

void	SetTargets (const MotiveTarget1f *targets)

void	SetTargetWithShape (const float target_values, const float target_velocities, const MotiveCurveShape &shape)

void	SetSplinesAndTargets (const CompactSpline const splines, const SplinePlayback &playback, const MotiveTarget1f *targets)

Public Member Functions inherited from motive::Motivator
	Motivator (const Motivator &original)

Motivator &	operator= (const Motivator &original)

	~Motivator ()
	Remove ourselves from the MotiveProcessor when we're deleted.

void	Invalidate ()

bool	Valid () const

bool	Sane () const

MotivatorType	Type () const

MotiveDimension	Dimensions () const

Protected Member Functions
MotiveProcessorNf &	Processor ()

const MotiveProcessorNf &	Processor () const

Protected Member Functions inherited from motive::Motivator
	Motivator (const MotivatorInit &init, MotiveEngine *engine, MotiveDimension dimensions)

void	InitializeWithDimension (const MotivatorInit &init, MotiveEngine *engine, MotiveDimension dimensions)

void	Init (MotiveProcessor *processor, MotiveIndex index)
	These should only be called by MotiveProcessor!

void	Reset ()

const MotiveProcessor *	Processor () const

Additional Inherited Members
Protected Attributes inherited from motive::Motivator
MotiveProcessor *	processor_

MotiveIndex	index_

Constructor & Destructor Documentation

motive::MotivatorNf::MotivatorNf ( )

inline

Motivator is created in a reset state. When in the reset state, it is not being driven, and Value(), Velocity(), etc. cannot be called.

motive::MotivatorNf::MotivatorNf	(	const MotivatorInit &	init,
		MotiveEngine *	engine,
		MotiveDimension	dimensions
	)

inline

Initialize to the motion algorithm specified by init. Current and target values are not set.

motive::MotivatorNf::MotivatorNf	(	const MotivatorInit &	init,
		MotiveEngine *	engine,
		MotiveDimension	dimensions,
		const MotiveTarget1f *	ts
	)

inline

Initialize to the motion algorithm specified by init. Set current and target values as specified by ts.

Member Function Documentation

void motive::MotivatorNf::Initialize	(	const MotivatorInit &	init,
		MotiveEngine *	engine,
		MotiveDimension	dimensions
	)

inline

Initialize this Motivator to the type specified in init.type.

Parameters

init	Defines the type and initial state of the Motivator.
engine	The engine that will update this Motivator when engine->AdvanceFrame() is called.
dimensions	The number of slots to occupy. For example, a 3D position would occupy three slots.

void motive::MotivatorNf::InitializeWithSplines	(	const MotivatorInit &	init,
		MotiveEngine *	engine,
		MotiveDimension	dimensions,
		const CompactSpline *	splines,
		const SplinePlayback &	playback
	)

inline

Initialize to the motion algorithm specified by init. Set movement to follow the curves specified in splines, an array of length dimensions, and modified byplayback`.

void motive::MotivatorNf::InitializeWithTargets	(	const MotivatorInit &	init,
		MotiveEngine *	engine,
		MotiveDimension	dimensions,
		const MotiveTarget1f *	targets
	)

inline

Initialize to the motion algorithm specified by init. Set current and target values as specified by targets, an array of length dimensions.

void motive::MotivatorNf::InitializeWithTargetShape	(	const MotivatorInit &	init,
		MotiveEngine *	engine,
		MotiveDimension	dimensions,
		const MotiveCurveShape &	shape,
		const float *	target_values,
		const float *	target_velocities
	)

inline

Initialize to the motion algorithm specified by init. Set target values and velocities as specified by 'target_values' and 'target_velocities', arrays of length dimensions, with shape specified by 'shape'.

void motive::MotivatorNf::SetSpline	(	const CompactSpline &	spline,
		const SplinePlayback &	playback
	)

inline

Follow the curve specified in spline. Overrides the existing current value.

Parameters

spline	The spline to follow. Array of length Dimensions().
playback	The time into the splines to initiate playback, the blend time to the splines, and whether to repeat from the beginning after the end of the spline is reached.

void motive::MotivatorNf::SetSplinePlaybackRate ( float playback_rate )

inline

Set rate at which we consume the spline set in SetSpline(). 0 ==> paused 0.5 ==> half speed (slow motion) 1 ==> authored speed 2 ==> double speed (fast forward)

void motive::MotivatorNf::SetSplines	(	const CompactSpline *	splines,
		const SplinePlayback &	playback
	)

inline

Follow the curves specified in splines. Overrides the existing current value.

Parameters

splines	The splines that the curves should follow. Array of length Dimensions().
playback	The time into the splines to initiate playback, the blend time to the splines, and whether to repeat from the beginning after the end of the spline is reached.

void motive::MotivatorNf::SetSplinesAndTargets	(	const CompactSpline const	splines,
		const SplinePlayback &	playback,
		const MotiveTarget1f *	targets
	)

inline

Drive some channels with splines and others with targets. For i between 0 and Dimensions()-1, if splines[i] != NULL drive channel i with splines[i]. Otherwise, drive channel i with targets[i].

Parameters

splines	Array of pointers to splines, length Dimensions(). Pointers can be NULL.
playback	Various parameters for `splines`.
targets	Array of targets that are used when splines are not specified. Length Dimensions().

void motive::MotivatorNf::SetSplineTime ( MotiveTime time )

inline

Seek to a specific time in the spline.

Parameters

time	The time (in the spline's x-axis) to seek to.

void motive::MotivatorNf::SetTargets ( const MotiveTarget1f * targets )

inline

Set the target and (optionally the current) motivator values. Use this call to procedurally drive the Motivator towards a specific target. The Motivator will transition smoothly to the new target.

Parameters

targets The targets that each value should achieve. An array of length Dimensions().

void motive::MotivatorNf::SetTargetWithShape	(	const float *	target_values,
		const float *	target_velocities,
		const MotiveCurveShape &	shape
	)

inline

Set the target values, velocities, and curve shape for the motivator. Procedurally drive the Motivator to 'target_values' and 'target_velocities' following a curve defined by 'shape'. Setting the target with the shape makes it so that a time does not need to be specified, as it will be calculated. In contrast, if the time needed to achieve a value is to be user-provided, SetTarget should be used instead.

Parameters

target_value	Array of target values with length Dimensions.
target_velocity	Array of target velocities with length Dimensions.
shape	The shape of the curve we'll create, as determined by the curve's typical delta value, typical total time, and bias.

void motive::MotivatorNf::Splines ( const CompactSpline ** splines ) const

inline

Gather pointers to the splines currently being played, on each dimension.

Parameters

splines Output array of length Dimensions().

MotiveTime motive::MotivatorNf::SplineTime ( ) const

inline

Returns the current time (i.e. the x-value) in the current spline. If Motivator is not being driven by a spline, returns 0. Whenever SetSpline() is called, this value will be reset to the start_time specified in SplinePlayback. Every time MotiveEngine::AdvanceFrame() is called, it will increment by delta_time * playback_rate. If the SplinePlayback has repeat=true, then SplineTime() will periodically loop back to time 0.

MotiveTime motive::MotivatorNf::TargetTime ( ) const

inline

Returns time remaining until target is reached. The unit of time is determined by the calling program.

The documentation for this class was generated from the following file:

motivator.h
